DeepSea Master

The decision

Rax should not sell DeepSea Master as a finished product in the next twelve months. It should run a funded validation programme that answers four questions a buyer will ask before the second boat: which licensed satellite network the transponder uses, whether the bridge units pass telecom and marine environmental certification, whether a fishing company will pay for monitoring that the free ISRO transponder does not provide, and whether a harbour partner can keep the first twenty installations working through a season. Classification: Validate before selling, on a scorecard of 53 out of 100. Confidence: medium, because the fleet, scheme and regulatory evidence is primary and current, while every product claim rests on a presentation. Rax has made no DeepSea Master sale; there is no installed base and no paying customer, and no pilot or reference exists. VerifiedS9S21S24S45 Rax-suppliedS1S6S140

Three facts drove this. First, the Vessel Communication and Support System has put two-way satellite messaging, SOS, weather and border alerts on more than 50,000 boats at no cost to the fisher, with one lakh planned, so the emotional core of the sales deck is no longer a gap. Second, the draft Merchant Shipping (Fishing Vessels) Rules 2026 require AIS on every fishing vessel and a vessel monitoring system, which creates demand, but only for equipment of approved type, which Rax does not yet have. Third, Rax's own record: no sale, no installed base, no paying customer, no coastal service, a referral problem in its main business, and a satellite module whose network is not named anywhere. VerifiedS24S45 Rax-suppliedS6S1S140

Findings that matter most

The fleet is large and mostly powered. India's registers held 66,106 mechanised and 1,35,763 motorised fishing craft in late 2024, against 42,985 and 97,659 in the 2016 census; the census also counted 25,689 non-motorised craft that DSM cannot serve. Tamil Nadu, Gujarat, Kerala, Maharashtra and Karnataka carry three quarters of the mechanised fleet. Publicly observedS12 VerifiedS9

Government money is real, but it flows to named items with ceilings. PMMSY lists a communication or tracking device at ₹35,000 with 40 or 60 percent assistance, a safety kit at ₹1 lakh and vessel upgradation at ₹15 lakh; Tamil Nadu prices its own safety kit at ₹2 lakh and lists GPS, VHF, DAT, echo-sounder and fish finder as its contents. DSM appears in none of these lists, so the deck's "40 to 60 percent subsidy" applies only if a state schedules DSM components inside a kit. VerifiedS21S81

The free transponder is not perfect, and that is the opening. Fishers in West Bengal told reporters the units were fitted but not functional; Dakshina Kannada's 2,067 units are being replaced after water ingress; the National Association of Fishermen says the system is "little more than location tracking and basic text messaging". Fishing companies in Mangaluru are queuing for BSNL satellite phones at ₹1.34 lakh. Demand for voice, data, engine and cold-store visibility above the transponder is documented. Publicly observedS26S32S72S74S53

Regulation is tightening in DSM's direction but raises the bar. The draft 2026 rules apply to every Indian fishing vessel, require AIS transceivers "in working condition" on all of them, require a VMS or approved satellite tracker, and require radio and navigation equipment of IMO-approved type. A product that integrates AIS and tracking is well placed; a product without type approvals is not. VerifiedS45

Rax's constraints decide the route. Only BSNL's Inmarsat service and ISRO programme links are legal civilian satellite paths in India; Iridium, Thuraya and Garmin inReach are banned or need DoT permission. Tracking devices with embedded SIMs and satellite equipment fall under mandatory TEC certification. Rax holds neither a satellite licence nor an MTCTE certificate, has two salespeople and no harbour presence. VerifiedS55S51 Rax-suppliedS6

The numbers to remember

Three numbers carry the argument. ₹35,000 is the price point the state has set for onboard safety electronics, and the free transponder lands exactly there. 50,000-plus is how many boats already have that transponder (February 2026), and the EEZ Rules make it compulsory for deep-sea fishing, so the addressable need is what it does not do. ₹2,330 Cr is the one-time pool if every powered craft bought DSM at list price; the serviceable share from Chennai is about ₹440 Cr and the realistic base case is ₹12 Cr a year by 2031. Together they say the business is a programme or fleet business with a thin private layer, not a harbour retail business. VerifiedS21S24S134S133 EstimatedS12S9S7

What would change the verdict

Upward to Pilot first: a signed airtime and licence agreement for the satellite path, MTCTE and IEC 60945 test reports, and one paid trial of ten or more vessels with logged SOS drills and fuel data. Upward to Sell now would need a state safety-kit inclusion or an NSIL sub-supplier position plus two paying company references. Downward to Defer: evidence that the final fishing vessel rules exclude non-type-approved bridge equipment from vessels beyond territorial waters, or a validation trial in which owners decline to pay anything above the free transponder. Recommendation

The first ninety days

Engineering names the satellite network and licence, or replaces it with a Skylo, BSNL or Xponder integration, and starts MTCTE and environmental testing. Sales signs one paid validation trial with a multi-boat operator at Kasimedu, Cuddalore or Kochi. The Managing Director obtains a written position from the Tamil Nadu Fisheries Department on scheduling DSM components inside the ₹2 lakh safety kit. Operations signs one harbour dealer-installer with a spares kit. Finance publishes a per-vessel-per-year service price and a bill of materials by tier. Each has a measurable result in the plan below. Recommendation

What Rax describes

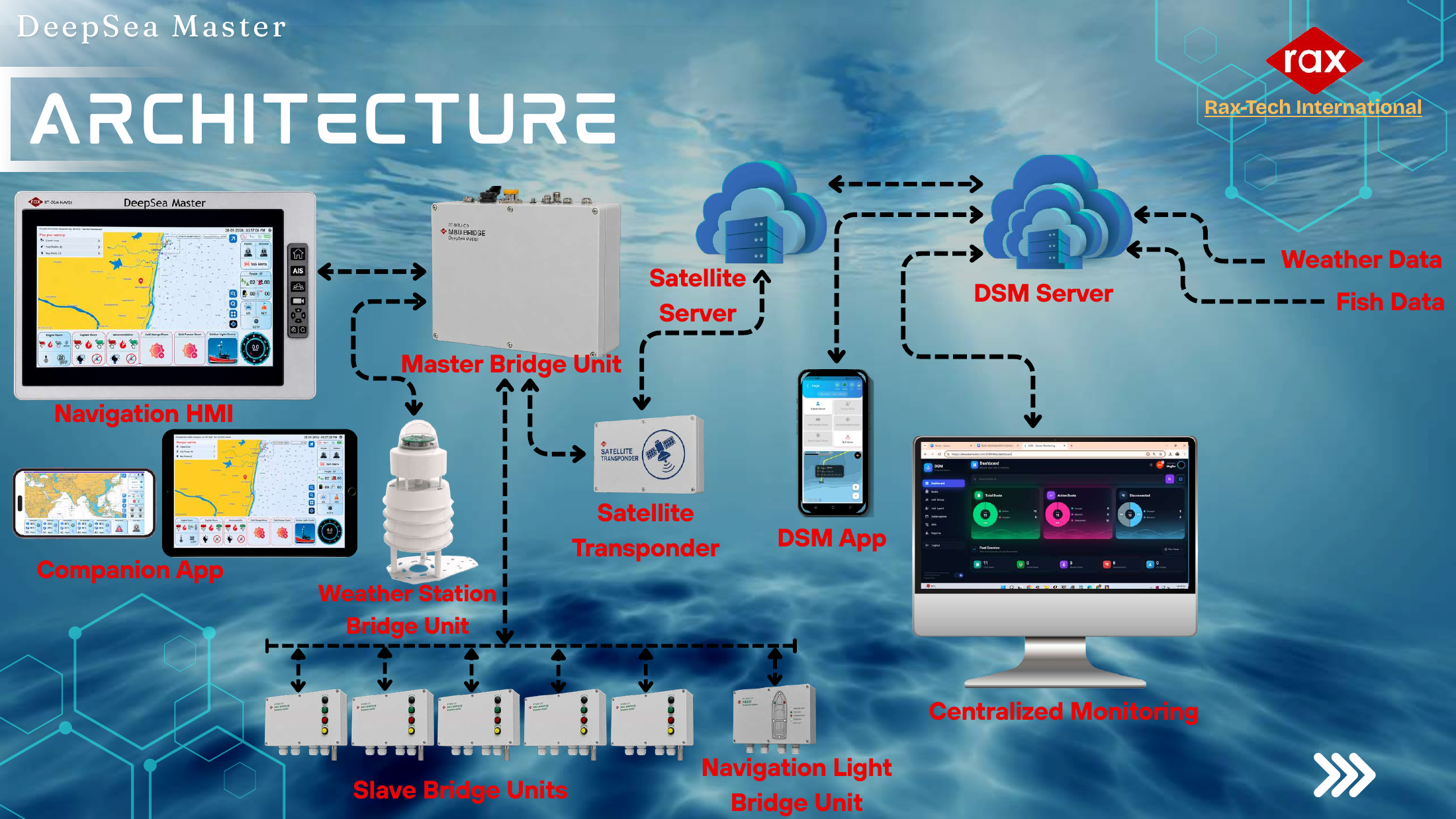

DeepSea Master is described by Rax as an integrated system for fishing boats and vessels with four core parts: a rugged navigation HMI (RT-DSM-NAV01 in the presentation, RT-DSM-R0 on the website) with offline charts and route planning, a Master Bridge Unit (RT-MBU-R0) as the central hub, Slave Bridge Units (RT-SBU-R0) placed in compartments, and the DSM app and server (RT-SW-DSM). The product master adds a Master Control Unit (RT-MCU-R0) with a single SOS push button and a satellite transponder (RT-STJ-IM) "used to acquire satellite data for the system". Peripheral units named in the presentation are a weather-station bridge unit and a navigation-light bridge unit. Rax-suppliedS1S5S8

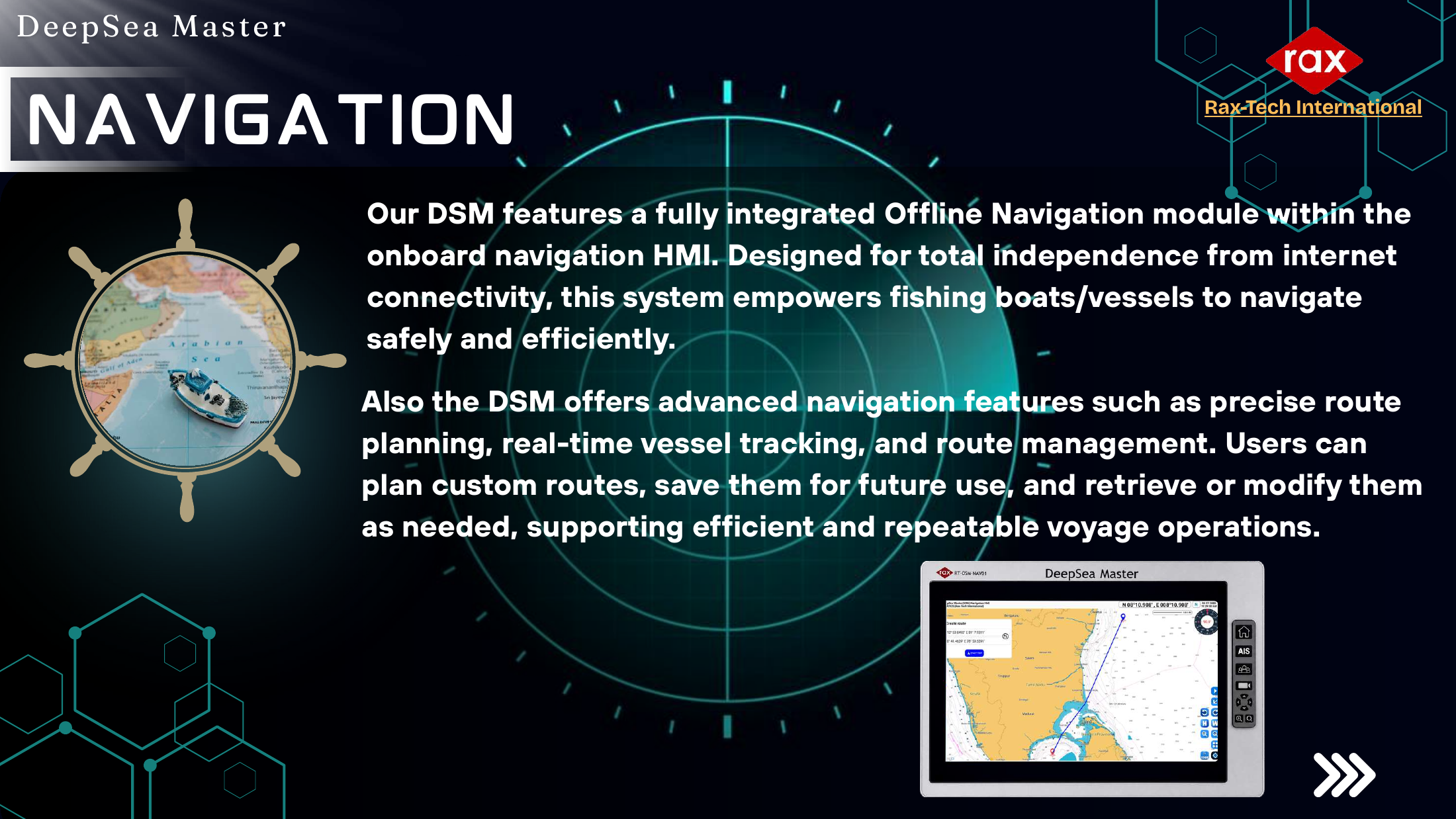

The presentation lists ten capabilities: offline navigation with saved routes; people safety through Bluetooth e-tags for up to twenty crew with panic buttons, SOS and help switches, smoke detectors and a hooter with voice announcements; IP camera surveillance to the HMI; an AIS boat locator with collision awareness and a net-locator buoy; two-way marine weather; fish-data recommendations by season, ocean and species; satellite communication limited to SOS, predefined messages and periodic positions when GPRS is lost; cellular as the primary link; room management; and an owner app with centralised fleet monitoring for administrators. Room management covers the captain room, engine room, accommodation, cold storage and deep freezer, each with panic and help switches, PIR and door sensors, smoke, temperature and humidity, and light and fan control; the engine room adds bilge sensing and pump control and engine RPM, coolant temperature and oil pressure. Rax-suppliedS1

The decks add positioning claims: "NavIC-ready comms", "AIS position reporting aligned with DG Shipping requirements", "rugged, marine-grade hardware", a Class-I local supplier position under the Public Procurement (Preference to Make in India) Order with a 50 percent local-content target, and a deployment model of survey and pilot, install and train, operate, and support and scale with "a coastal service network, SLAs, AMC". None of these is evidenced by a certificate, a test report or a named site. The investor deck is explicit that "no customer or pilot count [is] claimed until deployments are contracted". Rax-suppliedS2S3S4

Verified versus claimed

Rax-suppliedS1S2S3 VerifiedS47S48S45S51S40S50

The AIS claim needs care in front of a department buyer. DGS Order 15 of 2022 tells masters of ships in Indian waters to report switched-off or non-operational AIS to the nearest MRCC and provides for detention and an ₹8 lakh fee; it applies to vessels that must carry AIS, not to small fishing craft. The mandate relevant to fishing boats is the 2009 requirement for AIS on vessels over 20 m and, prospectively, Rule 47 of the draft 2026 rules. The government deck's line "Vessels must keep AIS operational" should be rewritten to cite the right instrument. VerifiedS47S48S45 Recommendation

Certifications: held, applied and missing

Rax holds ISO 9001:2015 from Bureau Veritas, first cycle from 22 September 2025, with a scope that includes customised hardware and software design, and ZED Silver; BIS CRS is applied for; TEC MTCTE, CE, UL, FM and EN 54 are not held. For DSM the relevant gates are different from the e-surveillance business. Bluetooth crew tags and any Wi-Fi in the HMI need WPC Equipment Type Approval, now on self-declaration since 9 September 2024, which is cheap and fast. A Master Bridge Unit with an embedded SIM, an IoT gateway function and a satellite terminal falls under the Telecommunications (Framework to Notify Standards, Conformity Assessment and Certification) Rules 2025, under which notified equipment cannot be sold or used without a certificate; TEC's product families include tracking devices with embedded SIM, IoT gateways, satellite communication equipment and VHF/UHF radios. The draft fishing vessel rules require radio equipment "of approved type as per performance standards specified by the International Maritime Organization" and navigational equipment to IMO performance standards, which in practice means IEC 60945 environmental and EMC testing and the relevant IEC 6xxxx equipment standards. Rax-suppliedS6 VerifiedS50S117S51S52S45S118

Which buyer requires which: a private boat owner requires nothing beyond a working unit and a WPC licence for any VHF; a state tender or NSIL sub-supply will require ETA, MTCTE, an Indian manufacturing address and financial standing, as NSIL's own battery RFP shows; a vessel beyond territorial waters under the coming rules will need approved-type radio and navigation equipment. Rax should treat MTCTE and IEC 60945 as the two certificates that unlock the segments that pay. VerifiedS35S45S51 Recommendation

Installed base and references

Rax has made no DeepSea Master sale. There is no installed base, no paying customer, no pilot vessel and no reference, and no test report or field log has been supplied. rax-tech.com lists four Marine Engineering models and RT-SW-DSM software; the RT-DSM-R0 "Datasheet" link opens the same 24-page presentation, titled "Boat Management Console" and created on 6 July 2026, which carries no electrical, environmental, radio or dimensional specification. The investor deck states that no customer or pilot count is claimed until deployments are contracted. Every capability in this section therefore remains a Rax claim until the validation trial recommended in the strategy section produces evidence. Rax-suppliedS140S139S4 Unknown

Service model

Rax's service record elsewhere is the best available predictor. The e-surveillance base of 3,000-plus EVA units carries a one-year warranty and no AMC; the sales lead reports frequent support calls including at installation, sample-based QC on large orders and missed urgent deliveries because of component dependency, and says no customer will refer the company. The government deck promises a coastal service network, SLAs and AMC; none exists today. A coastal product fails in salt, vibration and heat, and the field is already showing what that means: the VCSS vendor is replacing all 2,067 transponders in Dakshina Kannada after water ingress, trialling a redesigned unit on four boats for a month under NSIL inspection before replacement. A harbour-based installer with spares is therefore a precondition, not an option. Rax-suppliedS6S3 Publicly observedS32

Readiness gaps ranked by commercial impact

1. Satellite path. RT-STJ-IM's network and licence are unnamed; India permits civilians only BSNL's Inmarsat service, and ISRO's MSS links run through NSIL programmes. Without a legal path the "dual comms" claim cannot be sold. VerifiedS55S53S34 Unknown
2. MTCTE certification for the MBU's cellular and satellite functions; a six to nine month effort that gates any government or NSIL route. VerifiedS51
3. IEC 60945 environmental and EMC evidence for the HMI, MBU and SBUs, which the draft rules will make the reference for vessels beyond territorial waters. VerifiedS45S118
4. A working reference vessel with logged SOS drills, route data and fuel baselines. Recommendation
5. A harbour service partner with a spares kit and a service price. Rax-suppliedS6
6. Interoperability with the VCSS Xponder and Nabhmitra so that DSM complements rather than duplicates the free system; the Xponder exposes Bluetooth and Wi-Fi to a phone app, which is a plausible integration point. VerifiedS34S36 Recommendation
7. WPC ETA self-declarations for Bluetooth tags and any Wi-Fi radio. VerifiedS50
8. Chart licensing and an ECS standard for the offline navigation module. Unknown

Adjacent Rax products that bundle naturally

The RT-RMC-G2V0 rack monitoring controller already handles digital inputs, relay outputs, temperature, humidity, water leak, smoke and door sensors with a serial JPEG camera and Modbus, which is functionally a Slave Bridge Unit for a server rack; the EVA edge video analytics units and the GSM and 4G two-way communicators supply the surveillance and cellular building blocks. The software engineering bench has free bandwidth while hardware and firmware are booked, which favours the fleet dashboard and app as the parts to mature first. Rax-suppliedS6

Category and boundaries

DeepSea Master sits across three purchase categories that Indian fishing boats treat separately. Navigation and fish-finding electronics: GPS navigators and chartplotters, fish finders and sonar, radar, AIS. Safety and communication equipment: VHF radios, distress alert transmitters, EPIRBs, satellite phones and the government's MSS transponder. Vessel monitoring and telematics: engine and compartment sensors, cameras, fleet tracking and dashboards, which today exist on Indian fishing boats mainly through the government's Monitoring, Control and Surveillance network and a handful of private VMS vendors. DSM bundles the three into one bridge and one app. In scope for this report are all three categories as bought for mechanised and motorised fishing craft in India; out of scope are merchant-ship GMDSS equipment, leisure marine electronics, aquaculture monitoring and onshore harbour systems. Adjacent categories a buyer might substitute are a smartphone with free apps, a satellite phone, or simply the free transponder plus a ₹30,000 GPS. Rax-suppliedS1 Publicly observedS86S42S53 VerifiedS34

Value chain

The chain runs from chipsets and satellite capacity, through design and manufacture, distribution, installation and service, to the owner, skipper and crew. Foreign brands design and make abroad and stop at an Indian distributor: Garmin through AMIT International since 2017, Furuno through A. S. Moloobhoy and service houses such as Master Systems, Samyung through Upbeat Technologies in Chennai, Onwa through IndiaMART traders in Panvel, Hyderabad and Jamnagar. Installation and after-sales sit with port dealers and yard electricians. The government programme bypasses this chain entirely: SAC/ISRO developed the MSS technology, NSIL is the implementing agency, three empanelled Indian firms (Saankhya Labs, Avantel, Accord Software & Systems) supply and install, NSIL maintains for two years, INCOIS hosts the hub and state monitoring centres watch the boats. Satellite capacity is a public bottleneck: BSNL's Inmarsat gateway is the only civilian satellite voice service and ISRO's GSAT links serve the programme. Rax proposes to hold design, manufacture, installation and service in-house, which is unusual in the category and is at once its differentiation and its service exposure. Publicly observedS91S93S94S95S86S87 VerifiedS34S27S54S26

Margin sits in three places. Dealers earn a mark-up on imported navigation units, visible in the spread between the ex-factory USD 208 to 215 for an Onwa Class B AIS on Alibaba and ₹53,000 for an Onwa plotter with AIS on IndiaMART. Programme suppliers earn on volume at about ₹35,000 a transponder installed. Airtime earns for BSNL at ₹5,835 a month for thirty minutes and ₹25 a minute after that. Rax today sits nowhere in this chain; the chain diagram after this section shows where it could. Publicly observedS89S86S31S53 Inferred

How buyers describe and search for the category

Fishers and their associations talk about GPS, wireless sets or VHF, DAT machines, satellite phones, the transponder and the Nabhmitra app. Department and programme documents say safety kit, "communication and/or tracking devices for traditional and motorised vessels like VHF/DAT/NAVIC/Transponders", Vessel Communication and Support System, MSS terminal or Xponder, and vessel monitoring system. Tamil Nadu's scheme page itemises the safety kit as GPS, communication equipment, echo-sounder, lifejackets, lifebuoys, DAT, VHF radiotelephones, fish finder, backup battery and search-and-rescue beacon, and requires the beneficiary to hold an ownership certificate, ReALCraft registration, fishing licence and biometric ID. The draft 2026 rules use AIS transceiver, VMS "or other approved satellite-based tracking device", EPIRB, SART and "radio equipment of approved type". At the border the category splits across HS subheading 8526.91 (radio navigational aid apparatus: GNSS receivers and AIS) and 9014.80 (other navigational instruments, where echo sounders and fish finders sit), with transceivers and satellite terminals elsewhere in chapter 85, so no single import statistic measures it. The standards buyers and regulators name are IEC 60945 for environmental and EMC performance of marine navigation and radio equipment, the TEC MTCTE families for tracking devices, IoT gateways, satellite and VHF equipment, and IMO performance standards in the draft rules. Publicly observedS141S142 VerifiedS118S51S45 Nobody searches for an integrated bridge system; a DSM listing that wants to be found must use the buyer's nouns. VerifiedS21S81S34S45 Publicly observedS26S72S75 Recommendation

Market structure

The category is fragmented on the hardware side and concentrated on the programme side. Navigation hardware is imported and sold through dozens of small dealers; IndiaMART alone lists sellers in Bhavnagar, Mumbai, Thoothukudi, Porbandar, Jamnagar, Hyderabad and Kolkata, with prices from ₹23,000 for a Garmin GPS 152 to ₹1,00,000 for a Koden KGP-922. Safety communications are domestic and public: ISRO's DAT has more than 20,000 units in use since 2010, the Xponder programme targets one lakh, and Tamil Nadu alone procured 30,000 DATs in 2015 and gives VHF sets free or at 90 percent subsidy. Price tiers are therefore set by the state: ₹0 for the transponder and 5 W VHF, ₹1,800 for a subsidised 25 W VHF, about ₹26,000 for a subsidised satphone, ₹35,000 for a scheme tracking device, ₹1 lakh to ₹2 lakh for a full safety kit at scheme unit cost. A private product enters this ladder against a free anchor. Publicly observedS86S77S78S79 VerifiedS37S24S21S81

Domestic manufacturing capability exists for the satellite terminal (Accord, Avantel, Saankhya), for NavIC receivers (Accord) and for the DAT-SG, whose technology SAC offers to industry. There is no Indian maker of chartplotters or fish finders of note; Rax would be the first Chennai firm to combine an HMI, sensors and communications for fishing craft, which is a genuine gap and also the reason no benchmark exists. VerifiedS34S38 Inferred

History of the category in India

Three shocks and one programme shaped the last fifteen years. After the November 2008 Mumbai attacks the Centre required AIS transponders on fishing vessels over 20 m and the Coast Guard introduced biometric cards and colour coding; the DAT went operational in 2010. Cyclone Ockhi in December 2017 caught fishing boats beyond VHF range: 661 fishers were reported missing at one point and the two states later declared 263 of the missing dead, taking the toll to 365; Tamil Nadu responded with satellite phones at 75 percent subsidy, free 5 W VHF sets and 25 W sets at 90 percent, and Kerala tendered DATs and VHF for traditional craft. In June 2023 the Centre approved the VCSS national rollout with NSIL as implementing agency; the Prime Minister launched it in Maharashtra on 30 August 2024, 400 units were installed by September 2024, 4,000 by November 2024 and more than 49,000 by February 2026. In 2025 the Merchant Shipping Act 2025 replaced the 1958 Act and the draft fishing vessel rules of 2026 propose AIS and VMS on every fishing vessel. The next inflection is a licensed data service at sea: Starlink holds a GMPCS licence and Tamil Nadu officials say the Centre is contemplating it; the National Association of Fishermen petitioned for it in July 2026. Publicly observedS48S49S63S64S76S77S78S80S57S72 VerifiedS37S33S34S12S24S46S45

Market growth

The category has no published revenue series; the primary statistics are catch, fleet and exports. Over the five years to 2024-25 marine production grew at a compound 4.4 percent a year, flattered by the Covid trough of 2020-21. Marine fish production by financial year was 37.27 lakh tonnes (2019-20), 34.76 (2020-21), 41.27 (2021-22), 44.32 (2022-23), 44.95 (2023-24) and 46.15 (2024-25); the 2025 handbook puts marine growth at 3.05 percent a year over the period against 7.69 percent inland. CMFRI's calendar-year landings, a different method, were 35.7 lakh tonnes in 2025, up 3 percent. Seafood exports reached ₹62,408 Cr in 2024-25 with capture fisheries supplying 38 percent of value. The fleet on Department of Fisheries registers stood at 66,106 mechanised and 1,35,763 motorised boats in November 2024, against 42,985 and 97,659 in the 2016 census; part of the difference is registration under ReALCraft and part is real growth in motorised craft. The 2025 census, run digitally with drone counts of craft in November and December 2025, will settle the number when published. VerifiedS14S15S13S129S18S16S19S17S20S9S10 Publicly observedS12

The growth chart after this section plots the production series with a dashed outlook at 3 percent. For sizing purposes the relevant driver is not catch but the mechanised fleet and its trip length: multi-day vessels beyond cellular range are the ones that need a bridge, and the government's own count of 64,414 registered mechanised vessels "suited to deep-sea operations" is the closest official proxy. Publicly observedS72 EstimatedS12

Regulation and mandates

Fishing boats are registered under Part XVA of the Merchant Shipping Act 1958 and the Merchant Shipping (Registration of Indian Fishing Boats) Rules 1988, with inspection rules of the same year; DG Shipping's own manual records a review committee proposal to restrict Part XVA to boats of 20 m and above, and most small craft are in practice registered under state Marine Fisheries Regulation Acts through ReALCraft. AIS on fishing vessels over 20 m has been required since 2009. DGS Order 15 of 2022 makes switched-off AIS on ships in Indian waters reportable to the MRCC with detention and an ₹8 lakh fee for non-operational AIS. Enforcement of fishing regulation rests with states under their MFRAs, as the Lok Sabha was told in February 2026. VerifiedS44S47S24 Publicly observedS48

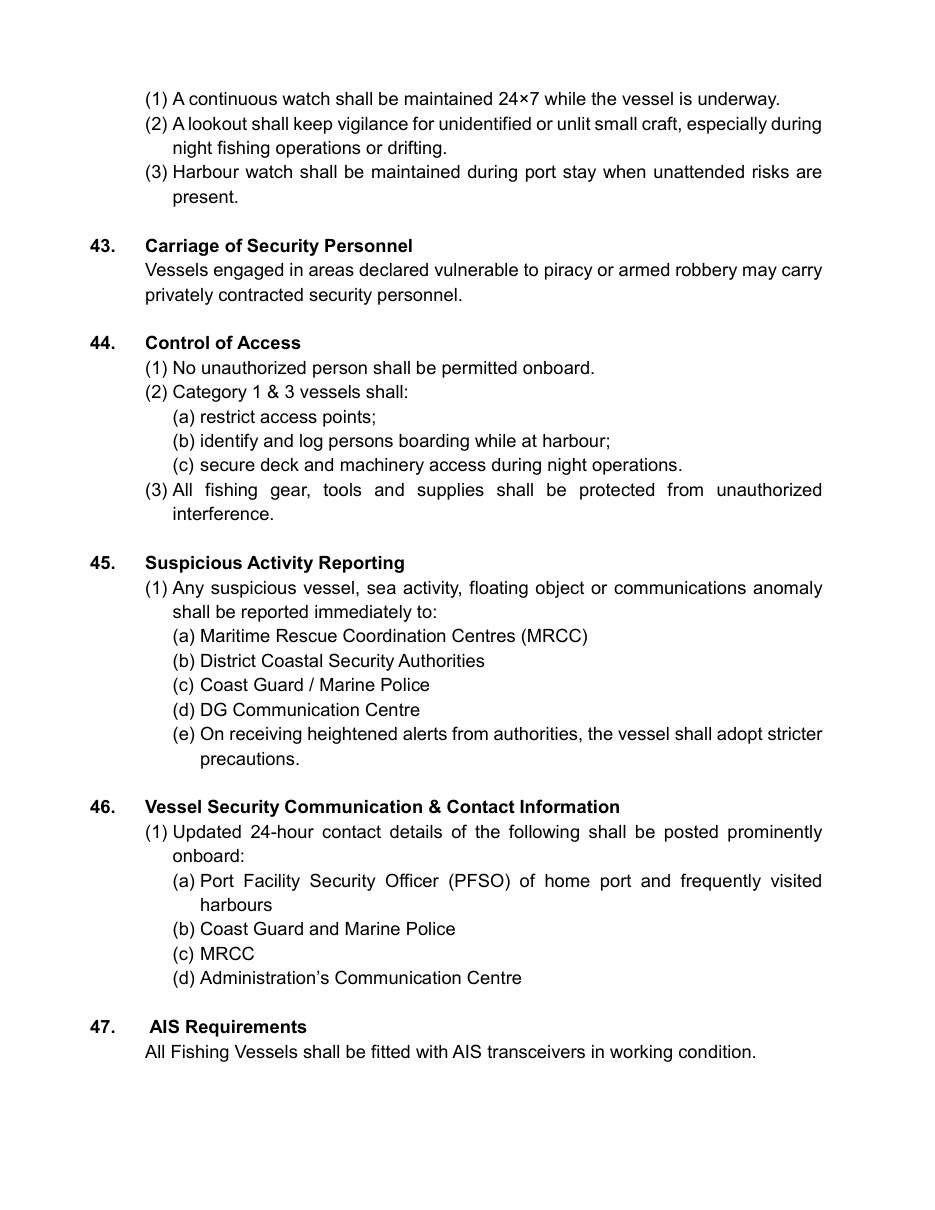

The Merchant Shipping Act 2025 (Act 24 of 2025) received assent on 18 August 2025 and repeals the 1958 Act. The Ministry of Ports, Shipping and Waterways has published the Draft Merchant Shipping (Fishing Vessels) Rules 2026 for consultation. They apply to "every Indian Fishing Vessel, wherever it may be" (Rule 1(3)). Rule 3 sets four design categories: Category 1, 24 m or more beyond territorial waters; Category 2, under 24 m beyond territorial waters; Category 3, 24 m or more within territorial waters; Category 4, under 24 m within territorial waters. Rule 32 requires radio equipment "of approved type as per performance standards specified by the International Maritime Organization" and a six-hour battery reserve (one hour for Category 4). Rule 33 requires Categories 1 to 3 to carry a GNSS receiver, an echo sounder, a 406 MHz or Inmarsat EPIRB and a SART or AIS-SART, and Category 1 to carry radar. Rule 47 states: "All Fishing Vessels shall be fitted with AIS transceivers in working condition." Rule 48 requires "an operational Vessel Monitoring System (VMS) or other approved satellite-based tracking device capable of automatically transmitting the vessel's position, course and speed at prescribed intervals to the designated monitoring centre", kept functional whenever under way and not switched off without a logged reason. Schedule III Table 2 sets radio carriage: Category 1 as per GMDSS with fixed VHF-DSC and Inmarsat or MF/HF; Category 2 one fixed VHF-DSC and one handheld; Categories 3 and 4 one handheld VHF. The rules also require a crew statement, a garbage record and posted MRCC and Coast Guard contacts. VerifiedS46S45

Enforcement reality: the draft is a consultation text and the Act was "not yet in force" when its summary was last updated; the coastal security apparatus (biometric cards, colour coding, manned landing centres) is real but uneven; Odisha reported 93 percent of boats colour-coded and ordered DAT fitment on motorised boats as early as 2017. The safe reading is that AIS-for-all and VMS-for-all will arrive over several years, with the VCSS Xponder likely to be recognised as the approved tracking device. VerifiedS46S49 Publicly observedS48 Inferred

A second instrument is already in force. The Sustainable Harnessing of Fisheries in the EEZ Rules, notified on 4 November 2025, make transponders and QR-coded Aadhaar or fisher ID cards mandatory, integrate ReALCraft with the Nabhmitra app, and require an Access Pass for about 64,000 mechanised vessels and motorised vessels over 24 m; the pass was launched nationally at Veraval on 20 February 2026, when the ministry put installed transponders at more than 50,000. For DSM this settles the tracking question: the government transponder is compulsory for EEZ fishing, so any DSM tracking function is additive. VerifiedS133S134

Telecom and satellite rules bite harder and sooner. Devices in de-licensed bands need WPC ETA, on self-declaration since September 2024. Tracking devices with embedded SIM, IoT gateways, VHF/UHF radios and satellite communication equipment are MTCTE product families under the 2025 conformity rules, without which notified equipment "shall not be sold or deployed". Civilian satellite communication is permitted only through BSNL's Inmarsat gateway; Iridium and Thuraya handsets are banned and two-way messengers such as inReach need DoT permission. Starlink received a GMPCS licence in June 2025 and a Unified Licence was confirmed in January 2026, but no maritime service for fishing boats exists at the cutoff. VerifiedS50S117S51S52S55S53 Publicly observedS57

Government schemes and budgets

PMMSY was approved in May 2020 with a ₹20,050 Cr outlay for 2020-21 to 2024-25 (₹9,407 Cr central, ₹4,880 Cr state, ₹5,763 Cr beneficiary), extended to 2025-26, restated by the ministry at ₹20,750 Cr in March 2026, and given ₹2,500 Cr in the 2026-27 Union Budget within a record ₹2,761.80 Cr for fisheries. By March 2026 the department had approved projects worth ₹21,274.16 Cr with a central share of ₹9,189.79 Cr and released ₹5,587.56 Cr; a year earlier the Lok Sabha was told ₹4,670.79 Cr had been released and ₹3,160.86 Cr utilised. The beneficiary-oriented table that matters for DSM is Table 1 of the scheme booklet: item 60, communication and/or tracking devices for traditional and motorised vessels such as VHF, DAT, NavIC and transponders at a unit cost of ₹0.35 lakh with assistance of ₹0.14 lakh (general) or ₹0.21 lakh (SC/ST/women); item 61, safety kits for fishers of traditional and motorised vessels other than the tracking device, at ₹1.00 lakh with ₹0.40 or ₹0.60 lakh; item 63, PFZ devices at ₹0.11 lakh; item 55, deep-sea fishing vessels for traditional fishers at ₹120 lakh with ₹48 or ₹72 lakh; item 56, upgradation of existing vessels for export competency at ₹15 lakh with ₹6 or ₹9 lakh; item 57, bio-toilets at ₹0.50 lakh; items 66 and 67, premium subvention for vessel insurance and free group accident insurance. The Union Budget line the deck quotes is therefore right, and the "40 to 60 percent" rate is right, but the subsidy attaches to listed items with ceilings. VerifiedS21S18S22S23

Disbursement is real and state-skewed. Central funds released to 2024-25 include Andhra Pradesh ₹430.1 Cr, Odisha ₹347.3 Cr, Kerala ₹344.2 Cr, Maharashtra ₹304.5 Cr, Karnataka ₹295.0 Cr, Tamil Nadu ₹153.9 Cr, Gujarat ₹103.7 Cr, Puducherry ₹61.2 Cr and West Bengal ₹55.1 Cr; the line "Others (Transponders, etc.)" shows a ₹364 Cr project cost, ₹218.4 Cr central share approved and ₹497.8 Cr released, the release exceeding the approval because the line pools other central items. Marine approvals to January 2026 include 480 deep-sea fishing vessels, 1,338 vessel upgradations and 2,259 bio-toilets. The Group Accident Insurance Scheme covers about 33 lakh fishers a year for ₹5 lakh on death or total disability with no premium from the fisher; Tamil Nadu enrolled 5.23 to 5.59 lakh fishers a year and paid ₹3.9 Cr to ₹6.2 Cr in claims annually. Kisan Credit Cards for fishers number 5,01,900 with ₹3,692.73 Cr disbursed. FIDF stands at ₹7,522.48 Cr with 64 Tamil Nadu projects worth ₹1,573.73 Cr. PM-MKSSY adds ₹6,000 Cr for 2023-24 to 2026-27 aimed at formalisation and insurance, with 30.60 lakh stakeholders on the National Fisheries Digital Platform. VerifiedS18S17S23S43S22

The Vessel Communication and Support System is the scheme that changes DSM's market. Approved in June 2023 on Odisha's request after an Orissa High Court case on turtle protection, it funds "indigenously developed transponders" on one lakh mechanised and motorised vessels across 13 coastal states and UTs at ₹364 Cr, shared 60:40 with states and 100 percent for UTs, free to eligible fishers. NSIL implements it, SAC/ISRO designed the S-band MSS terminal, three private firms supply and install, INCOIS hosts the hub, NSIL maintains for two years. The Xponder pairs over Bluetooth or Wi-Fi with the Nabhmitra Android app for periodic position reporting, two-way messaging, predefined SOS ("Fire on Boat", "Boat Sinking", "Medical Help Needed"), weather and cyclone alerts, PFZ advisories, IMBL geo-fence alerts, offline maps and trip declaration. By February 2025 42,316 mechanised and 46,900 motorised units had been allocated by state; by February 2026 more than 49,000 were installed. Goa reports the unit cost at about ₹35,000. VerifiedS33S34S24S25S36S31 Publicly observedS26S27S29

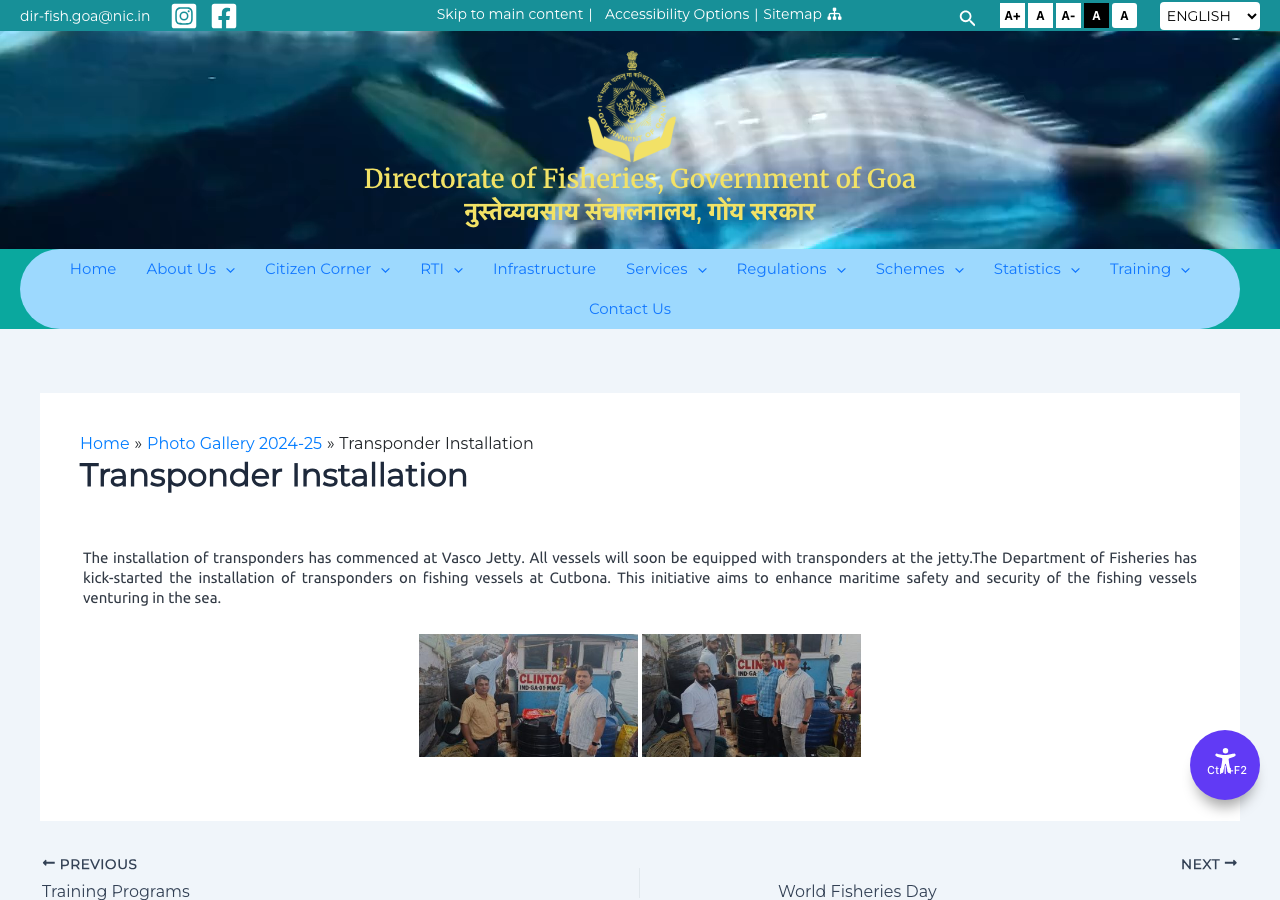

State schemes complete the picture. Tamil Nadu fitted ISRO transponders on 507 mechanised boats on trial, is fitting upgraded units on all mechanised boats through ISRO at ₹18.01 Cr with 1,645 done, and has 7,373 motorised boats in the national plan; it gives 5 W VHF sets free (the fisher pays the ₹500 WPC fee), 25 W sets worth ₹18,000 at 90 percent subsidy, satellite phones worth ₹1.05 lakh at 75 percent to deep-sea clusters, and prices a safety kit at ₹2 lakh. Kerala tendered ₹4 Cr of DATs and ₹5 Cr of VHF for traditional craft in 2019. Maharashtra's fisheries minister reviewed BSNL satphones for deep-sea fishers in July 2026. VerifiedS30S81 Publicly observedS78S77S76S80S73

Incidents and public events

Cyclone Ockhi (December 2017) is the founding incident of this market: 661 fishers were reported missing to Parliament on 27 December 2017; the Home Ministry told the Standing Committee that, as on 4 January 2018, 105 lives had been lost (30 in Tamil Nadu, 75 in Kerala) and 344 fishers were still missing (203 and 141), with 845 rescued; Kerala and Tamil Nadu later classified 263 of the missing as dead, taking the toll to 365. The deck's "about 427 missing" is the Kanyakumari Collector's interim count of 11 December 2017 for crews of 43 multipurpose boats that had not returned, a single-district figure the Collector himself declined to call missing; it should be replaced with the 661, 344 and 365 figures with dates. The same committee report records that mobile phones reach only 10 to 12 nautical miles from shore, which replaces the deck's "about 3 km"; the only figure near 3 km found is a Thoothukudi report of two nautical miles. Cross-border detention is the second driver. MEA told the Rajya Sabha that Sri Lanka arrested 74, 143, 229, 220 and 528 Tamil Nadu fishers in 2020 to 2024, and the Lok Sabha that 526 were apprehended in 2024 with 72 boats confiscated and only 2 boats released; 1,306 fishers and 179 boats were seized between 2023 and 23 July 2026, with 146 arrests in 2026 to that date. The deck's "535 arrested in 2024" traces to an Al Jazeera report citing Indian government data for all Indian fishers; the primary MEA replies give 526 (Lok Sabha) and 528 (Rajya Sabha) for Tamil Nadu, and 538 released, so the deck should cite MEA's 526 with the date or attribute 535 to its source. Gujarat had 144 fishers and 1,173 boats in Pakistani custody at the end of 2024. Capsizings with lost contact continued through 2025 and 2026: three missing off Alibaug in July 2025, six off Visakhapatnam in July 2026 after families lost contact, four off Thiruvananthapuram in August 2026 with families protesting a delayed search. Publicly observedS63S64S131S71S130S61S62S123S66S65 VerifiedS132S59S60 Rax-suppliedS2

Technology shifts

NavIC-based two-way messaging has moved from ISRO's DAT (2010, one-way, more than 20,000 units) to the DAT-SG (January 2024, acknowledgement and two-way, Bluetooth to phone, technology offered to industry) and to the S-band MSS Xponder now on tens of thousands of boats. Skylo launched a satellite NB-IoT hub for Tamil Nadu fishers on BSNL infrastructure in 2021. INCOIS publishes daily PFZ advisories for 586 landing centres and a free SAMUDRA app, and the MSSRF Fisher Friend app offers PFZ navigation in eight languages. Data at sea is the next step: ABJ Impex reports pilots with video calls and live CCTV beyond 300 nautical miles, and Starlink is licensed but not launched. Cheap Chinese AIS and plotters (an Onwa Class B AIS at USD 208 ex-factory) make the coming AIS mandate affordable. VerifiedS37S38S34S40 Publicly observedS84S41S42S72S57S89

Macro and sector indicators

The sector's economics in 2026 are dominated by fuel. A Kerala boat owners' association put a three-day trip at 1,500 litres and ₹1.5 lakh of fuel in 2022, which is the deck's figure; Gujarat trawlers burn about 3,500 litres on a 15 to 21 day trip; Goa trawlers 5,000 to 7,000 litres. The Iran war pushed diesel up in 2026: Goa reported ₹138 a litre in April and Odisha's fishers stayed ashore from 15 June because harbour bulk diesel was ₹140 to ₹142 a litre against ₹99 to ₹101 retail. Fuel-saving route planning is therefore a live selling point, and a cash-strapped owner is a harder buyer. Exports at ₹62,408 Cr and the EU's CATCH digital catch-certificate system, mandatory from 10 January 2026, add a traceability pull for deep-sea operators. Publicly observedS69S125S124S68S67S58 VerifiedS17

Timing windows

Fitting happens in the ban: the west coast trawl ban runs about 52 to 61 days from June (Kerala's ended on 31 July 2026) and Maharashtra's from 1 May to 1 August, so June and July are the installation window on the west coast and April to mid-June on the east coast. State budgets close in March and PMMSY sanctions run through district Assistant Directors during the year; VCSS's stated completion target was December 2025 and installation is still running in 2026, with replacements in Karnataka in August 2026. The draft rules' consultation is the window to seek recognition of integrated systems. Publicly observedS65S104S27S32 VerifiedS45 Recommendation

Counter-drivers

Four things suppress demand. The free transponder removes the most urgent reason to buy. Fuel and catch volatility remove discretionary cash, and the June 2026 strike shows owners will tie up boats rather than spend. The subsidy list names devices with ceilings, not systems. And the field record of electronics on Indian boats is poor: transponders not functional in West Bengal, water ingress in Karnataka, satphones that lose signal beyond 200 nautical miles. Each is an argument for a validation trial rather than a launch. VerifiedS24S21 Publicly observedS67S26S32S72

Method

The market is sized bottom-up from craft counts, then triangulated against what governments actually spend on onboard safety electronics, because no analyst series for Indian fishing-vessel electronics exists. Units come from the 2016 CMFRI census (the only state-level primary count), the Department of Fisheries registration figures quoted in November 2024 (the latest national count), and the government's 64,414 "deep-sea suited" mechanised vessels quoted in July 2026. Prices are Rax's published starting tiers. The 2025 census, whose field work ended in December 2025, will replace the 2016 rows when published. VerifiedS9S10 Publicly observedS12S72 Rax-suppliedS7

Bottom-up arithmetic

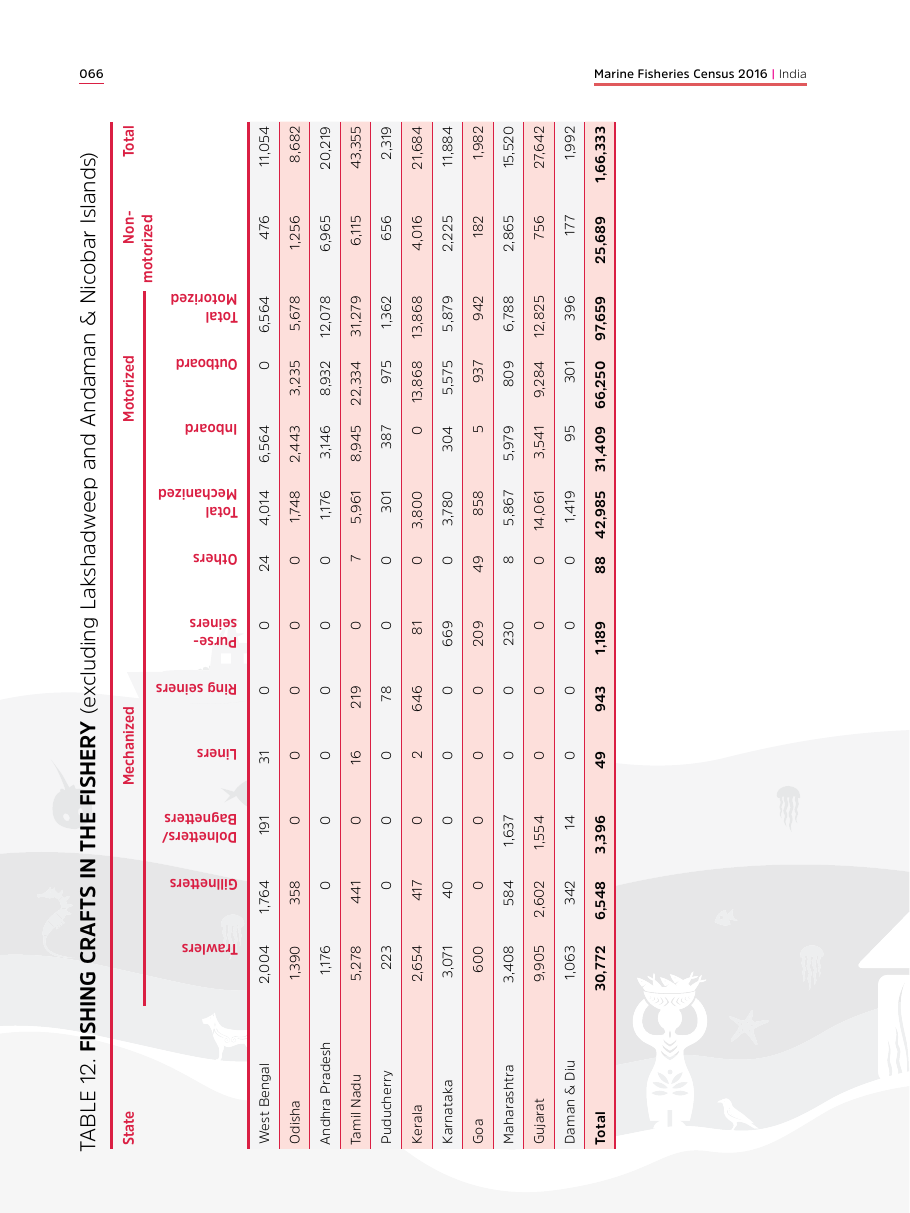

EstimatedS12S9S7S6

Non-motorised craft (25,689 in 2016) are excluded: no engine room, no power, day trips within sight of shore. Outboard motorised craft (66,250 in 2016) are excluded from SAM but kept in TAM at the boat tier, because they have no bridge or compartments and their owners buy through cooperatives on subsidy; the boat tier would need a sub-₹35,000 variant to reach them. Gujarat and Maharashtra, with 19,928 mechanised craft between them, are excluded from SAM until a west-coast service partner exists. VerifiedS9 Rax-suppliedS6 Recommendation

The deck's TAM floor of ₹2,185 Cr uses 1.46 lakh powered vessels and 72,749 mechanised vessels; those numbers come from an MPEDA page citing an older census and should be replaced. On the 2016 census the same arithmetic gives ₹1,563 Cr (42,985 × ₹2.5 lakh + 97,659 × ₹50,000); on 2024 registers it gives ₹2,331 Cr. The range, not the point, is the honest statement. Rax-suppliedS4 Publicly observedS11 VerifiedS9 EstimatedS12

Top-down triangulation

Public spend is the only top-down series. VCSS spends ₹364 Cr on one lakh units over roughly three years, about ₹120 Cr a year; Tamil Nadu is spending ₹18.01 Cr on mechanised-boat transponders and procured 30,000 DATs for ₹36 Cr in 2015; Kerala tendered ₹9 Cr of DATs and VHF in 2019; Tamil Nadu's VHF and satphone schemes add single-digit crores a year. Private replacement of GPS and fish finders on 66,106 mechanised boats at about ₹40,000 every seven years is roughly ₹38 Cr a year, and AIS purchases ahead of the mandate could add ₹20 to ₹35 Cr a year at Onwa prices. The category therefore turns over about ₹180 to ₹250 Cr a year, of which two thirds is public. A one-time pool of ₹2,331 Cr at DSM list prices implies a 10 to 13 year replacement cycle at that spend, which is plausible for bridge electronics and confirms the bottom-up order of magnitude. The gap between methods is explained by list-price hardware versus scheme unit costs: the state pays ₹35,000 for what DSM prices at ₹50,000 to ₹2.5 lakh. VerifiedS24S30S79S80S21 Publicly observedS86S89 EstimatedS12

Five-year series

TAM and SAM grow about 1 percent a year, the assumed growth of the registered mechanised fleet; the motorised fleet grows faster on registers but at the boat tier it adds little value. SOM is capacity- and reference-constrained, not demand-constrained, until 2029. EstimatedS12S6 Inferred

Sensitivity

The programme lever is the only one that moves SOM by more than a factor of two; the satellite lever only cuts. Subsidy eligibility matters less than the deck implies, because the ceiling caps assistance at ₹14,000 to ₹21,000 per tracking device regardless of DSM's price. EstimatedS21S6 Recommendation

Government versus private demand, India versus export

Government demand dominates in units and is spent through NSIL and district Assistant Directors: one lakh transponders, tens of thousands of VHF sets, thousands of satphones and DATs, and PMMSY vessel upgradations (1,338 approved) and deep-sea vessels (480 approved) whose electronics are specified by yards. Private demand is concentrated in fishing companies and multi-boat owners who already pay ₹1.34 lakh for a satphone and ₹5,835 a month for airtime, and in owners replacing GPS units at ₹23,000 to ₹45,000. Export demand is a programme question: Sri Lanka's 1,500-boat VMS mandate and Oman's national tracking system are closed to new devices without the operator's approval, so the export share of SOM is held at zero through 2028. VerifiedS24S17S18 Publicly observedS53S74S86S113S111 Recommendation

What the sizing does not capture

It excludes recurring revenue (airtime, dashboard, AMC), which the deck says is the expansion model but which Rax has not priced; at a hypothetical ₹6,000 a vessel a year on 2,000 connected vessels by 2031 that would add ₹1.2 Cr a year. It excludes replacement demand created by the AIS mandate, because timing depends on the final rules. It uses 2016 state rows for SAM and 2024 national registers for TAM, which are not the same base. It assumes DSM prices hold against Onwa at ₹53,000 for a plotter with AIS and the free transponder at ₹0. The honest reading is a TAM of ₹1,600 to ₹2,300 Cr one-time, a SAM of ₹440 to ₹660 Cr, and a SOM of ₹6 to ₹40 Cr a year by 2031 depending almost entirely on whether a state or NSIL carries the volume. EstimatedS9S12S86 Rax-suppliedS4 Unknown

Segment table

EstimatedS9S17S18S26S111S113S102 VerifiedS21S34

The eight scoring dimensions and their reasoning are in the data file; the pattern is simple. Demand is highest where trips are longest and losses largest: deep-sea companies, Palk Bay and Gulf of Mannar boats, Kerala's post-Ockhi fleet, Gujarat's Pakistan-exposed fleet. Fit and access fall with distance from Chennai and with the buyer's dependence on schemes. Readiness is uniformly low because nothing is certified or installed. Differentiation is highest where the buyer runs more than one boat, because the fleet dashboard is the one thing no free system gives a private owner. EstimatedS9S12 VerifiedS24 Inferred

Ideal customer profile

The ideal first customer is a fishing company or an owner with three to ten mechanised vessels of 15 to 24 m operating from Kasimedu, Cuddalore, Thoothukudi, Kochi or Mangaluru on trips of five to twenty days beyond territorial waters, already holding a BSNL satellite phone and a VCSS transponder, with an engine driver on board, a cold hold or freezer, and a shore manager who wants to know where each boat is and whether the engine and hold are healthy. Trigger events are a loss-of-contact scare, a detention, a fuel bill that tied up boats in June 2026, a PMMSY-financed upgrade or a new deep-sea vessel from a yard. The current alternative is a satphone, a plotter and WhatsApp within coverage. The budget holder is the owner; the decision takes one season because installation must happen during the ban. Willingness to pay is anchored by what these owners already spend: ₹1.34 lakh for a handset plus ₹70,000 a year of airtime, ₹45,000 for a Garmin plotter, and fuel of ₹1.5 to ₹2 lakh a trip. Publicly observedS74S53S86S69S67S66 VerifiedS45S24 Recommendation

Buying committee

For a company or multi-boat owner, six roles decide. The economic buyer is the owner or director, who needs a price after any subsidy, a visible payback in fuel, gear and downtime, and one working reference boat; the deal dies without a reference or when the price exceeds the free transponder plus a ₹50,000 plotter. The user is the skipper and the engine driver, who need offline charts, one-press SOS, alarms that do not nag and a Tamil or Malayalam interface; training burden and false alarms kill it. The champion is the fleet manager or association secretary, who needs paperwork support and a dashboard that answers "where are my boats" at two in the morning; a failed install on a member's boat in season kills it. The technical evaluator, in programme deals a Fisheries Department joint director or NSIL engineer, needs ETA and MTCTE certificates, environmental test evidence and interoperability with the Xponder and AIS; an unlicensed satellite path kills it. The funder, a district Assistant Director sanctioning PMMSY items or a bank issuing a KCC, needs eligible-item status within a ceiling. The installer, a harbour dealer or yard electrician, needs margin, spares, training and a number that answers. Two further roles decide quietly. Risk and compliance sits with the Mercantile Marine Department surveyor or Coast Guard boarding officer who will check AIS, VMS and radio carriage under the coming rules, and with the insurer whose vessel premium PMMSY subsidises; a device that confuses an inspection kills the deal. Procurement is the company accountant or association treasurer in private deals, who needs a GST invoice, a warranty and a service price, and the tender committee in programme deals, which applies turnover, net worth and audit gates. The committee diagram after this section sets this out. VerifiedS21S34S45S51S35S49 Publicly observedS32S74 Inferred

Jobs to be done and willingness to pay

Willingness to pay is proven for the first three jobs at the company level and unproven for the last four at any level. The deck's fuel argument is plausible but unquantified; a validation trial that logs routes and fuel is the way to price it. Publicly observedS74S69 Recommendation

Case study one: a Mangaluru fishing company with several boats

Karnataka's trawler fleet is concentrated in Mangaluru and Malpe, with 3,780 mechanised craft in 2016 and 2,067 boats fitted with VCSS transponders in Dakshina Kannada alone. In August 2026 BSNL's Mangaluru division reported rising demand for satellite phones from "fishing companies [that] operate several boats that venture into the sea at different times", expecting fifty more connections each from Udupi and Mangaluru; the same month the district's transponders were being replaced after water ingress under NSIL supervision. Six years earlier a Mangaluru association said hundreds of fishers die each year for want of connectivity and that it had tested BSNL's two-way data transponder. A DSM validation trial here would fit five to ten boats of one company with the vessel tier, integrate the Xponder feed, log engine and hold data, and measure whether the shore manager's satphone bill and search anxiety fall. Success looks like a signed second-season order and a written reference. VerifiedS9 Publicly observedS32S74S75 Recommendation

Case study two: Palk Bay and Coromandel owner-operators

Tamil Nadu has 5,961 mechanised craft and 31,279 motorised craft, 349 landing centres and 7.96 lakh fisherfolk. Its owners face the country's sharpest border risk: 526 Tamil Nadu fishers were apprehended by Sri Lanka in 2024 with 72 boats confiscated and only 2 returned; 146 more were arrested in the first seven months of 2026. The state already gives 5 W VHF free, 25 W VHF at 90 percent subsidy, satphones at 75 percent subsidy to deep-sea clusters, fitted 507 boats with trial transponders and is fitting all mechanised boats through ISRO at ₹18.01 Cr; it prices a safety kit at ₹2 lakh. The National Association of Fishermen's Tamil Nadu president says boats avoid going beyond 200 nautical miles because "we have no way to contact anyone". A DSM validation trial here would work through one harbour association at Kasimedu or Cuddalore, fit ten boats with the boat tier plus IMBL geofence and immutable position logging, and seek the department's written view on scheduling DSM inside the ₹2 lakh kit. VerifiedS9S60S30S81 Publicly observedS61S77S78S76S72 Recommendation

Case study three: Kerala's post-Ockhi fleet

Kerala has 3,800 mechanised craft and 13,868 outboard craft, 174 landing centres and 5.64 lakh fisherfolk, and it carries the memory of Ockhi, when 102 Kerala fishers were among the 263 missing later declared dead. Its boat owners' association put a three-day trip's fuel at ₹1.5 lakh in 2022; on 1 August 2026, the first day after the 52-day ban, two boats capsized off Thiruvananthapuram, four fishers went missing, several boats "could not be traced" and families protested a delayed search. Kerala has 6,000 transponders allocated, a cooperative federation of 654 societies with its own diesel bunks and outboard distribution, and PMMSY central releases of ₹344 Cr. A trial here would pair with the All Kerala Fishing Boat Operators Association at Kochi or Neendakara, fit mixed tiers on ten boats, and test whether the owner app's loss-of-contact alert and the crew tags change what families and coastal police do in the first hour. VerifiedS9S18 Publicly observedS64S69S65S26S102 Recommendation

Named organisations to target

Inclusion below is a research target based on public evidence, not a relationship. Fishing companies and owner groups: the Mangaluru and Udupi fishing companies buying BSNL satphones; owners at Kasimedu, Cuddalore, Nagapattinam, Rameswaram, Thoothukudi and Karaikal represented by the National Association of Fishermen (Tamil Nadu) and the Rameswaram-based associations whose boats are seized; the All Kerala Fishing Boat Operators Association (Joseph Xavier Kalapurackal) and Kerala Matsya Thozhilali Aikya Vedi (Charles George); the Odisha Marine Fish Producers Association (Srikant Parida); ABJ Impex (J Mahiban) as a partner-customer with deep-sea pilots; the Visakhapatnam boat operators whose crews lost contact in July 2026. Cooperatives and federations: Matsyafed (654 societies), the Gujarat Fisheries Central Cooperative Association, the Maharashtra Fishery Cooperative Federation and its Palghar and Thane district federations. Departments and agencies: the fisheries departments of Tamil Nadu, Kerala, Karnataka (Dakshina Kannada joint director), Goa, Andhra Pradesh, Odisha and West Bengal; NSIL and its three Xponder suppliers, Accord Software & Systems, Avantel and Saankhya Labs; INCOIS for PFZ data licensing; BSNL for GSPS or Skylo airtime. Yards and dealers: Cochin Shipyard, National Fibers (Nagapattinam), Upbeat Technologies (Chennai), A. S. Moloobhoy (Mumbai), Seanav Marine (Panvel). Export: Tadum (Oman) and Sri Lanka's Department of Fisheries and Aquatic Resources, both deferred. Publicly observedS74S72S69S82S67S85S66S102S104S31S32S35S105S106S95S93S87S111S113 VerifiedS30S80S18S34S40S54 Recommendation

Landscape

Thirty-three competitors, substitutes and partner-competitors are profiled in the data file. They fall into five groups. First, the public safety-communication stack: the VCSS Xponder and Nabhmitra app, ISRO's DAT and DAT-SG, INCOIS's PFZ advisories, GEMINI receiver and SAMUDRA app, BSNL's Global Satellite Phone Service, and the state VHF networks; all free or subsidised, all domestic. Second, imported navigation and fish-finding hardware sold by port dealers: Furuno, Garmin, Samyung, Onwa, Koden, JRC, Simrad and Lowrance, Raymarine, ICOM, em-trak. Third, private connectivity and monitoring vendors: Skylo, ABJ Impex, and prospectively Starlink. Fourth, the substitutes: a smartphone with free apps, generic Chinese imports, and doing nothing beyond the handheld VHF the draft rules require. Fifth, partner-competitors who could carry or block DSM: the three Xponder makers, Cochin Shipyard, and the dealers AMIT, A. S. Moloobhoy, Upbeat, Seanav and Galaxy Technocom. Import versus domestic splits cleanly: hardware is imported, safety communications are Indian and public. Price tiers run from ₹0 (transponder, 5 W VHF) through ₹20,000 to ₹55,000 (plotters, AIS, handheld VHF) to ₹1.34 lakh (satphone) and beyond for professional Furuno stacks. VerifiedS24S34S37S40S54 Publicly observedS86S87S95S84S85S57S89S45

Deep-dive one: the VCSS Xponder and Nabhmitra (ISRO, NSIL, Accord, Avantel, Saankhya)

What it is: an S-band mobile-satellite-service terminal designed by SAC/ISRO with NavIC positioning, built-in Wi-Fi and Bluetooth, paired to the Nabhmitra Android app. The app offers periodic position reporting, two-way messaging with the control centre and other boats, predefined SOS messages ("Fire on Boat", "Boat Sinking", "Medical Help Needed"), weather and cyclone alerts, PFZ advisories, IMBL geofence alerts, offline maps and trip declaration. The hub sits at INCOIS with state monitoring centres and a data centre in Delhi; messages work to about 200 nautical miles. NSIL is the implementing agency, engaged Saankhya Labs, Avantel and Accord Software & Systems for supply and installation, maintains the units for two years and ran a separate RFP for lithium-ion batteries on motorised boats. Scale: 400 installed by September 2024, 4,000 by November 2024, 42,316 mechanised and 46,900 motorised allocated by February 2025, more than 49,000 installed by February 2026, against one lakh planned at ₹364 Cr; Goa puts the unit cost at about ₹35,000, shared 60:40. Weaknesses observed in the field: fishers in West Bengal said units were fitted but not functional; Dakshina Kannada's 2,067 units are being replaced after water ingress; the National Association of Fishermen calls the system little more than tracking and text; the app has 10,000-plus downloads and 13 reviews. Threat to DSM: high, because it makes SOS, alerts and geofencing free. Opportunity: the Xponder exposes Bluetooth and Wi-Fi, so an integrated bridge that reads its position and messages and adds sensors, cameras and a fleet dashboard is technically plausible; the three suppliers are also the natural route into NSIL tenders. VerifiedS24S34S35S36S31 Publicly observedS26S27S12S32S72 Inferred

Deep-dive two: Skylo Technologies

Skylo launched a Tamil Nadu fishermen solution in June 2021 on the world's first satellite NB-IoT network, connecting through BSNL's satellite ground infrastructure, which makes it a licensed path. The Skylo Hub mounts on the boat, draws from the battery, relays sensor data and two-way messages to a shore app, offers a catch-reporting app for selling from sea, and claimed a rescue of seven Maharashtra fishers in November 2020. Pricing was described as "as low as a daily cup of tea/coffee"; hardware price was not published. Its fisheries programme director, Ganesh Nakhawa, is a fishing-industry insider who also comments on AIS rules. No evidence of adoption at scale after 2021 was found in this research. Threat: high on the connectivity layer, because Skylo has what Rax lacks, a legal satellite data path, and low on the bridge layer, because it has no HMI, cameras or compartment control. It is the most obvious connectivity partner for DSM. Publicly observedS84S83 Unknown Recommendation

Deep-dive three: ABJ Impex

A Tamil Nadu company whose managing director, J Mahiban, is quoted by the National Association of Fishermen's campaign for data at sea. Its site describes a Vessel Monitoring System for fisheries that switches between cellular and satellite, sends positions, SOS and personal messages, camera images and trawl information to authorities and owners, plus GSPS FleetPhone terminals and a harbour monitoring system built with Promatas of Oman. In July 2026 it reported pilots off Kerala, Tamil Nadu and Karnataka "maintaining uninterrupted contact on voice and video calls and live CCTV with boats more than 300 nautical miles offshore", pending regulatory approval for wider deployment. Threat: high on positioning, because it sells the same integrated story to the same deep-sea buyers and has industry standing; unknown on execution, because no references, certifications or prices are published. It could be partner or rival; Rax should meet it early. Publicly observedS85S72 Unknown Recommendation

Deep-dive four: Furuno through A. S. Moloobhoy and Master Systems

Furuno is the name Indian trawler skippers trust for GPS and sonar. Its GP-39 navigator sells for ₹30,000 to ₹36,680 and the GP-25 for ₹28,640 on IndiaMART; A. S. Moloobhoy in Mumbai stocks its fishing range and Master Systems services it at Mumbai, Chennai, Kochi, Visakhapatnam and Kolkata. Furuno makes the FA-50 Class B AIS and professional sonar Rax does not offer; it issued a customer notice on the FA-50 in August 2026. It sells unit by unit through dealers with no integrated safety, communications or monitoring layer for small craft and no India-specific fleet software. Threat: high for share of the navigation budget, low for the integrated proposition; a DSM HMI that accepts Furuno sonar input would be stronger than one that competes with it. Publicly observedS86S87S93S94S96 Recommendation

Deep-dive five: Onwa and the Chinese value tier

Onwa's KP-27 7 inch plotter sells for ₹28,000 in Jamnagar and its KP-39A 7 inch plotter with a Class B+ AIS transponder for ₹53,000 in Hyderabad; Seanav Marine in Panvel lists the KP-1299X five-in-one plotter with AIS and radar. Ex-factory, Alibaba sellers price the KS-200A Class B AIS at USD 208 to 215, the KP-1299A at USD 600 and the KS-33R AIS man-overboard personal locator at USD 100 to 150, which is a crew-safety wearable that competes with DSM's e-tags. When the AIS-for-all rule lands, this tier will supply most of the transceivers. Threat: high on price for every hardware element of DSM; weak on service, certification and integration. Publicly observedS86S87S89 VerifiedS45

The rest of the field in brief

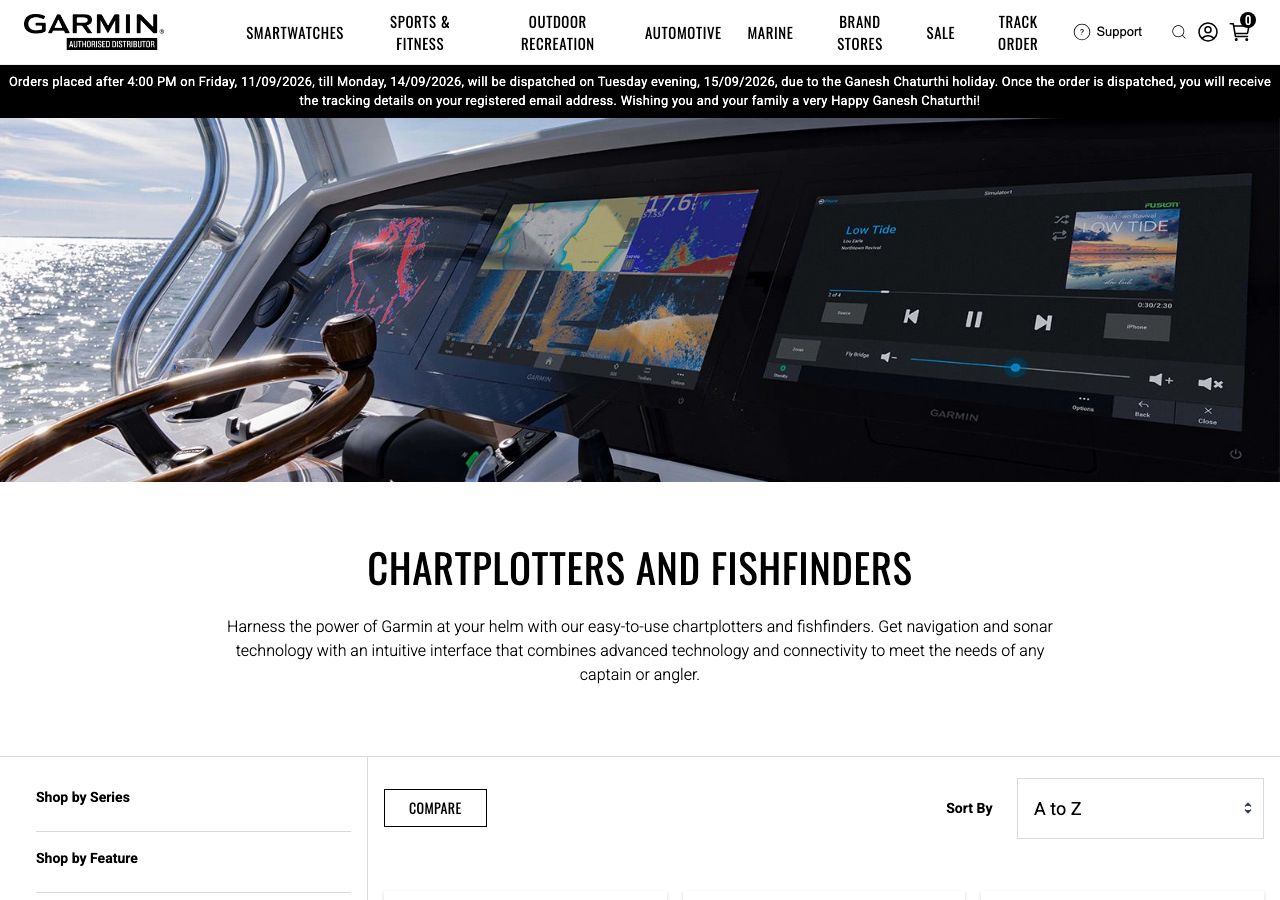

Garmin reaches Indian boats through AMIT, which has distributed its marine range since 2017 and became exclusive distributor in 2023; the GPS 152 sells for about ₹23,000 at Porbandar and the GPSMAP 585 Plus for ₹45,000 to ₹48,000 at Thoothukudi, but its inReach satellite messenger cannot be used in India without DoT permission, so Garmin competes for the screen, not the link. Samyung reaches the same harbours through Upbeat Technologies in Chennai, whose dealer page prices on enquiry; it is the brand a Kasimedu owner meets first. ICOM is the default VHF, with the IC-M25 handheld at ₹17,900, and its DSC sets are what the draft rules will require on Category 2 vessels. BSNL's satellite phone is the licensed voice incumbent at ₹1,34,166 a handset and ₹25 a minute, and the one product fishing companies are visibly buying in 2026. ISRO's DAT, with more than 20,000 units since 2010 and a two-way DAT-SG whose technology SAC offers to Indian industry, is the cheapest satellite SOS and a possible licensing route for Rax. INCOIS gives away the fish-finding advice DSM's "fish data" feature promises, for 586 landing centres. InCEve Electronics, a Bengaluru sonar-analytics startup, shows how hard the category is: no evidence of scale was found after 2019. Starlink holds its licences but has no fishing-boat service at the cutoff. Visma Consulting in Sri Lanka and Tadum in Oman are the gatekeepers of the two export programmes. VerifiedS37S38S40S45 Publicly observedS91S86S95S88S53S74S98S100S57S114S111

Feature and price comparison against DSM

Rax-suppliedS1 VerifiedS24S34 Publicly observedS86S89S84S85S53S56

Positioning map narrative

The map after this section plots cost of a fit-out against breadth. The crowded corner is cheap and single-function: transponder, VHF, DAT, apps. The mid-band is navigation hardware from ₹23,000 to ₹1,00,000, one function per box. The expensive single-function corner is the satphone. The empty space is integrated and mid-priced, where Rax places DSM, with Skylo and ABJ Impex the only neighbours, both stronger on connectivity and weaker on the bridge. The question the map cannot answer is whether the empty space is empty because nobody has built it or because fishers do not pay for it; Skylo's quiet five years since launch is a warning that connectivity alone did not sell. Publicly observedS84S86S53 Inferred

Where Rax wins, where it loses

Rax wins where a buyer runs several boats and values one screen and one app for position, crew, engine and hold, where a yard is specifying a new deep-sea vessel and wants one supplier, and where Make in India preference applies to a state purchase. It loses on brand and dealer footprint to Furuno and Garmin, on price to Onwa and Samyung, on legality and airtime to BSNL and Skylo, on free-ness to the Xponder, and on trust to anyone with an installed base. Buyers' complaints about incumbents are consistent: transponders not functional or leaking, satphones that drop beyond 200 nautical miles and cost ₹25 a minute, no data, no video, no price information at sea. DSM should be written against those complaints, not against Garmin's feature list. Publicly observedS26S32S72S53 Inferred Recommendation

Competitor responses to expect

If DSM gains visible share in a harbour, Onwa dealers will bundle a plotter, AIS and an AIS MOB tag for under ₹70,000; Skylo or ABJ Impex will add a display and a dashboard; NSIL's suppliers may extend the Nabhmitra app with owner-side tracking, which would be the most damaging move; and BSNL will keep lowering the satphone entry price, as its ₹1 SIM offer in Mangaluru shows. Rax's defensible ground is the sensing and control layer inside the boat and a service relationship at the harbour, neither of which a satellite operator or an importer wants to own. Publicly observedS89S84S85S36S74 Inferred

Observed price points

Publicly observedS86S87S89S31S79S39S88S77S53 VerifiedS81S21 Rax-suppliedS2S7

The full set of thirty-three points with dates and URLs is in the data file. Two features of the ladder matter. Every point below ₹55,000 is a single device, and every point above it is either a satphone or a scheme kit. Nothing in the market is priced like DSM's vessel tier except a full state safety kit at ₹2 lakh, which bundles GPS, VHF, DAT, echo-sounder, fish finder, battery and beacon from several brands. VerifiedS81 Publicly observedS86S53 Inferred

Rax's current pricing and its inconsistencies

The approved facts are "from ₹50,000 for fishing boats" and "from ₹2.5 lakh for fishing vessels", "priced after a vessel assessment", with "connectivity, weather, fish intelligence and fleet-monitoring services scoped to the modules and coverage you choose". Three inconsistencies need fixing. The government deck cites a "per-boat benchmark: ₹364 Cr / 1,00,000 vessels", which is ₹36,400 and below DSM's own entry price; it should either be dropped or used to justify a sub-₹35,000 configuration. The sales deck promises "40 to 60 percent subsidy on eligible deep-sea vessel and modernisation costs" next to the DSM tiers, which implies DSM is eligible; it is not a listed item. The investor deck's ₹2,185 Cr TAM uses superseded fleet counts. None of the decks prices airtime, hosting or service. Rax-suppliedS2S3S4S7 VerifiedS21S24 Recommendation

Price architecture options

Option A is the only one Rax can execute alone in 2026-27 and the one the validation trial should test. Option B is the volume route and depends on certificates. Option C is the route the deck promises and the least under Rax's control. Option D is how satphone airtime already works and would be familiar to buyers. VerifiedS21S27S31 Publicly observedS53 Recommendation

Cost to serve and margin hypotheses

No bill of materials, unit cost, airtime tariff or service cost exists in the record; margin is Unknown. What the plan needs: a boat tier that carries at least 40 percent gross margin after a ₹5,000 installation and a ₹3,000 a year service reserve, and a vessel tier at 45 percent, because the harbour partner will expect 15 to 20 percent and one warranty visit to a boat 300 km from Chennai costs a day. The VCSS vendor's replacement of 2,067 units in one district shows the tail risk of salt damage; a 5 percent annual replacement reserve is prudent. Satellite airtime is a pass-through unless Rax resells a Skylo or BSNL plan with a margin. Rax-suppliedS6 Publicly observedS32S53 Unknown Recommendation

Subsidy and scheme effects on effective price

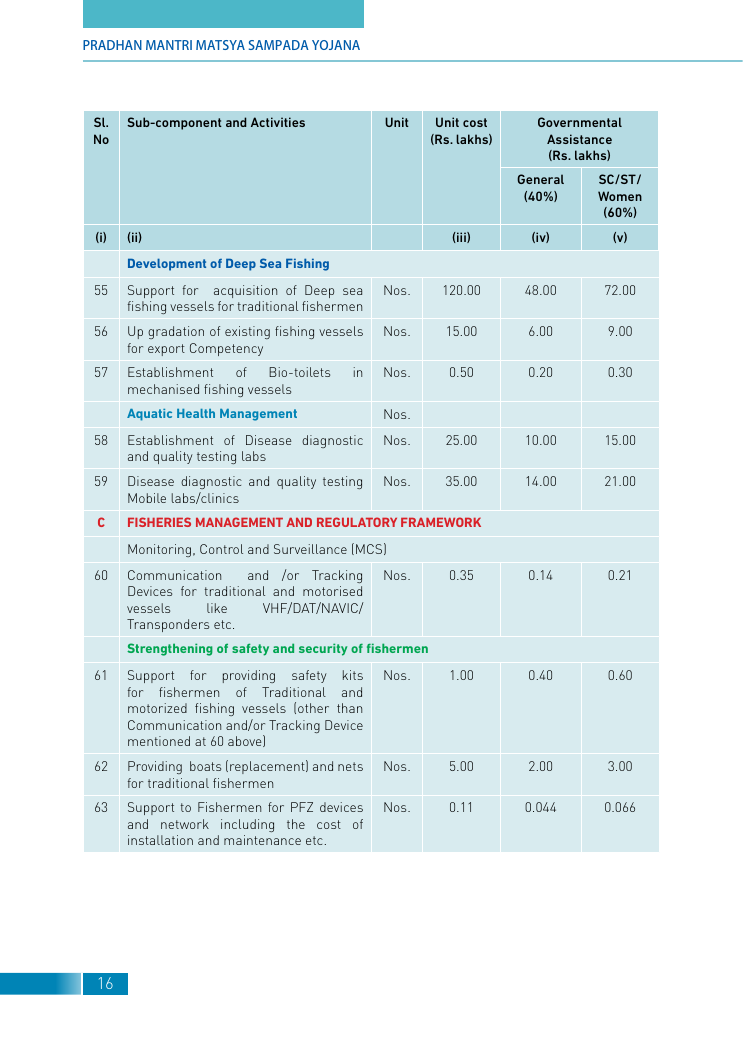

Under item 60 the fisher's assistance is capped at ₹14,000 (general) or ₹21,000 (SC/ST/women) whatever the device costs, so a ₹50,000 boat tier accepted as a tracking device would cost the fisher ₹36,000 or ₹29,000; under item 61 a ₹1 lakh kit that included DSM would cost ₹60,000 or ₹40,000 for the whole kit; Tamil Nadu's ₹2 lakh kit follows its own funding pattern. The transponder itself is free. The deck's "₹20,000 to ₹30,000 after subsidy" is therefore only right if the state schedules DSM in a kit and the fisher belongs to the 60 percent category. VerifiedS21S81S24 EstimatedS7

Tender pricing dynamics

NSIL's battery RFP shows the shape of programme procurement: an RFP with volumes across nine states and four UTs, bidder eligibility on turnover, net worth and Indian manufacturing addresses subject to audit, and L1 selection. Transponder supply and installation went to three empanelled firms at about ₹35,000 a unit including two-year maintenance. State tenders for VHF and DATs have run at ₹12,000 to ₹18,000 a unit. GeM listings for fisheries procurement exist but no open bid for integrated vessel systems was found. Price discovery for DSM in a tender therefore starts at ₹35,000 installed for anything that competes with the Xponder and at ₹1 lakh to ₹2 lakh for a kit. VerifiedS35S27 Publicly observedS31S79S77S109 Unknown

Payment terms and receivable risk

Fishing companies pay on delivery or through KCC-backed bank finance (5,01,900 KCCs, ₹5 lakh limit); owner-operators pay in instalments tied to the season and default when the catch fails or fuel spikes, as the June 2026 tie-up shows; state programmes pay 60 to 180 days after installation and inspection; NSIL pays its suppliers on milestones. Rax's e-surveillance receivable history, including an insolvent customer, argues for advance payment on hardware and monthly service billing in the private segments. VerifiedS18 Publicly observedS67 Rax-suppliedS6 Recommendation

Routes to market

Direct enterprise: fishing companies and multi-boat owners in Mangaluru, Kochi, Kasimedu, Thoothukudi and Visakhapatnam, reached through the associations and BSNL's own satphone demand lists; cycle one season; Rax must provide a demo boat, a trial contract, and a shore dashboard. Existing-account expansion: none of Rax's e-surveillance accounts fish, but FUJI and the OEM design business show Rax can sell a customised controller to an industrial buyer; a yard is the closest analogue. OEM and white-label: an Xponder supplier or a satellite operator could sell DSM's SBUs and dashboard under its own name; Accord, Avantel, Saankhya and Skylo are the candidates. System integrators and dealers: Upbeat Technologies (Chennai), A. S. Moloobhoy (Mumbai), Seanav Marine (Panvel) and Galaxy Technocom (Hyderabad) already install navigation units on fishing boats. Tenders and GeM: NSIL RFPs, state fisheries tenders for kits, VHF, DATs and satphones, and GeM listings. Government schemes: PMMSY items 60, 61, 55 and 56 sanctioned by district Assistant Directors, and Tamil Nadu's ₹2 lakh safety kit. Associations and cooperatives: the All Kerala Fishing Boat Operators Association, the National Association of Fishermen, the Odisha Marine Fish Producers Association, Matsyafed, GFCCA and the Maharashtra federation. Marketplaces: IndiaMART, where every competing plotter is listed and where Rax's inbound already originates. Export through group entities: Gulf Connect for Oman's tracking programme, deferred. The route diagram after this section shows the intermediaries and the proof each needs. Rax-suppliedS6 VerifiedS34S35S21S81 Publicly observedS95S93S87S86S69S72S67S102S104S111

Intermediaries assessed

Publicly observedS95S93S94S86S87S91S84S53S74S69S82S72S67S102S104S105S106S85S111 VerifiedS34S36S35S81S30S80S32S31S33 Rax-suppliedS6

Procurement mechanics

Three mechanisms exist. Beneficiary schemes: the fisher applies at the district Assistant Director's office with ownership certificate, ReALCraft registration, fishing licence and biometric ID; the state assesses "specific and essential requirement of items" for the vessel; assistance is released after verification. Only listed items with unit-cost ceilings qualify, which is why DSM must be scheduled inside a kit or priced under ₹35,000 as a tracking device. Central programme procurement: NSIL issues RFPs (the battery RFP asks for turnover, net worth, share capital and manufacturing addresses for audit) and empanels suppliers; states execute installation through their departments and monitoring centres. State tenders: fisheries directorates tender VHF, DATs and satphones on e-procurement portals with L1 selection; NFDB and GeM carry fisheries procurement. Pilot-to-scale paths in this sector are real: Tamil Nadu's 507-boat transponder trial preceded its ₹18.01 Cr mechanised programme, and Odisha's court-driven request preceded the national rollout. Empanelment with NSIL or a state, not a one-off tender, is the target. VerifiedS81S21S35S30S33 Publicly observedS109S110 Recommendation

What Rax tried before and why this differs

Rax's digital marketing agencies and channel partners with their own sales teams both failed for the e-surveillance business, and referrals are dead by the sales lead's account. The harbour dealer-installer proposed here is not a sales channel: it is paid per installation and per service visit, sells nothing, and exists because a boat 300 km from Chennai cannot be serviced from Medavakkam. The association route differs from a channel partner because the association is the buyer's own institution and handles the paperwork it already handles for VHF and satphone subsidies. The NSIL route differs because the buyer is a single agency with published RFPs. Each re-proposal is stated with its reason. Rax-suppliedS6 VerifiedS35S81 Recommendation

Sales motion and enablement

Two people can run three harbours and one programme conversation. The motion is: identify ten multi-boat operators per harbour from association lists and BSNL satphone demand; demonstrate on one instrumented boat; sign a paid validation trial with an SOS drill, route logging and fuel baseline protocol; install in the ban window; report at season end; convert to a second-season order and a written reference. Proof assets needed before the first demonstration: a one-page legality note naming the satellite path and licences, ETA certificates for the tags, a test report for water and vibration, a service price, and an interface note showing how DSM reads the Xponder. The pilot design is in the strategy section. Reference-building given the quality history means one boat done well before ten, and a named champion in each association. Rax-suppliedS6 VerifiedS50S45S34 Recommendation

Marketing that matches how buyers find suppliers

Buyers in this category find suppliers at the harbour, at department seminars and on IndiaMART. The Department of Fisheries and ISRO have run eleven seminars and workshops on space technology in fisheries with more than 4,000 participants and a Mumbai session of 300 fishers, officials and boat owners; those rooms are where DSM should be demonstrated. IndiaMART is where every competing plotter is priced and where Rax's inbound already arrives; a DSM listing in the buyer's nouns (GPS, AIS, transponder-compatible, safety kit) is cheap. Associations' WhatsApp groups and harbour notice boards carry news of every capsizing and seizure; a working reference boat will travel through them faster than any advertisement. Digital marketing agencies should not be re-engaged. VerifiedS25 Rax-suppliedS6 Publicly observedS86 Recommendation

India: state ranking

The tile map after this section scores thirteen coastal states and UTs from 0 to 100 on five weighted inputs: mechanised fleet (30 percent, 2016 census), PMMSY central funds released to 2024-25 (20 percent), VCSS transponders allocated as a proxy for programme activity (20 percent), incident and border pressure (15 percent) and service reach from Chennai (15 percent). The weights are the researcher's; the inputs are primary and are listed below. VerifiedS9S18 Publicly observedS26 EstimatedS60S62

VerifiedS9S18S60 Publicly observedS26S30S31S32S62S64S65S66S67S74S123S61

VCSS allocations are unstable between documents: NSIL's October 2024 battery RFP lists 10,961 motorised boats for Karnataka and 1,000 for Kerala, against 1,091 and 2,648 in the February 2025 state-wise data used in the table, so the allocation column is a proxy for programme activity, not a fixed plan. VerifiedS35 Publicly observedS26

Tamil Nadu leads on every input but scheme releases. It has 349 landing centres, 575 villages and 7.96 lakh fisherfolk; its owners lose boats to Sri Lanka every month; the state gives VHF free, subsidises satphones and prices a ₹2 lakh kit; it fitted 507 trial transponders before the national programme and is spending ₹18.01 Cr on its own; Kasimedu is thirty minutes from Medavakkam and Cuddalore two hours. Kerala combines the second-largest reachable mechanised fleet, the highest central releases in the south after Andhra Pradesh, the strongest associations and the Ockhi memory. Karnataka has the clearest evidence of paying demand from fishing companies and the clearest evidence of transponder failure. Puducherry is small but adjacent and shares Tamil Nadu's border problem. Andhra Pradesh has the largest PMMSY book of any state (₹2,405 Cr of projects, ₹430 Cr released), 350 landing centres and inboard-heavy motorised craft that suit the boat tier. Gujarat's 14,061 mechanised craft and Pakistan exposure would rank it second on demand alone, but Veraval is 2,000 km from Chennai and a west-coast partner does not exist. Maharashtra's state government is evaluating BSNL satphones and could become a programme buyer. Odisha has money and cyclones but a small mechanised fleet. West Bengal, the UTs and Lakshadweep are volume-poor or unreachable. VerifiedS9S18S30S81S60 Publicly observedS61S77S78S69S64S74S32S62S73S67S26S29

Harbours, in order of first contact: Kasimedu (Chennai), Cuddalore and Nagapattinam, Thoothukudi and Rameswaram, Kochi (Munambam, Thoppumpady) and Neendakara, Mangaluru and Malpe, Visakhapatnam and Kakinada, then Veraval and Porbandar with a partner. VerifiedS9 Recommendation

Export

Sri Lanka: 5,200 registered multi-day boats, 4,200 already with VMS, and a July 2026 Cabinet decision to fit the remaining 1,500 at government cost, following a 2022 phase supplied by Visma Consulting of Denmark. Entry would require approval by the Department of Fisheries and Aquatic Resources and compatibility with the incumbent shore system; no Rax presence, no marine approvals, and the Palk Bay politics make an Indian-branded tracker a sensitive sale. Defer. Publicly observedS113S114 Recommendation

Oman and the GCC: Oman's Ministry of Agriculture, Fisheries and Water Resources signed with Tadum in December 2025 to operate a national tracking system for all artisanal boats in phases, on a coastal LoRaWAN network of 40 to 70 km with satellite backup, after a 2021 agreement with Middle East Scientific Equipment Corporation and 250 vessels fitted by 2023. The system transmits position, speed, heading, stops, emergency alerts and tamper attempts; a new device enters only as an approved component. Gulf Connect in Muscat has one OEM client and no marine sales. The UAE monitors larger vessels through mandatory tracking. Saudi Arabia: the July 2026 iibdaei research contains no marine or fishing content and there is nothing to reuse; iibdaei has no sales. For all three, the requirements are an Indian reference first, then type approvals and a local partner. Defer to 2028 and treat as an add-on sensor supplier to the national operator, not a system vendor. Publicly observedS111S112 Rax-suppliedS6 Recommendation

Europe: RaxTech Europe in Warsaw has no sales and Europe's fishing fleets are regulated under EU AIS and VMS rules with type-approved suppliers; no evidence of demand for DSM was sought or found. Out of scope for this product. Rax-suppliedS6 Unknown

Sequence and triggers

Phase one (2026-27): Chennai to Cuddalore, one fishing company or association, one dealer-installer. Trigger to phase two: a paying second season and certificates. Phase two (2027-28): Kochi and Mangaluru through the Kerala association and a Karnataka fishing company, plus the Tamil Nadu kit conversation. Trigger to phase three: a state ruling or an NSIL sub-supply. Phase three (2028-29): Visakhapatnam and Kakinada, a Cochin Shipyard specification, and a west-coast partner for Gujarat and Maharashtra. Export only after phase three. Recommendation

Where the signals come from

The quote grid after this section holds thirty-seven verbatim signals with sources: parliamentary committee findings and Lok Sabha replies, PIB releases, state officials quoted in the press, association presidents, individual fishers and their families, a Google Play review, vendor statements and two internal remarks. Tamil Nadu, Kerala, Karnataka, Maharashtra, Odisha, Goa and West Bengal are represented, and every signal concerns India. Fishers' own channels were not reached: association WhatsApp groups are closed, and no public forum thread by an identifiable fisher surfaced in the web searches run for this report. The fisher's voice therefore reaches us mostly through reporters and officials, which filters it towards incidents and away from routine purchase decisions. VerifiedS132S24S133S134 Publicly observedS72S26S65S67S69S36 Rax-suppliedS6

Theme one: nobody can reach us beyond coverage

This is the loudest signal and the oldest. After Ockhi the Standing Committee on Home Affairs recorded that mobile phones reach 10 to 12 nautical miles and that beyond 50 nautical miles "there are no means of communication available to the fishermen in such parts of the deep sea". Kanyakumari's Collector said of 427 trawler crew who had not returned, "We do not call them missing because they generally go for 30 to 45 days and they do not contact families." Nine years later the words are the same. The National Association of Fishermen's Tamil Nadu president says, "If an accident occurs or a fisherman falls ill at sea, we have no way to contact anyone." A West Bengal wife says the whole family lives in anxiety while her husband is out for ten to fifteen days. On 1 August 2026 officials in Thiruvananthapuram said several boats "could not be traced" and efforts were under way "to establish contact". The ministry itself says most Indian fishing still happens within 40 to 50 nautical miles, which is why the EEZ push makes the gap wider, not narrower. VerifiedS132S134 Publicly observedS131S72S26S65

If an accident occurs or a fisherman falls ill at sea, we have no way to contact anyone.

Theme two: the free system falls short

The government's transponder is valued and criticised in the same breath. A Google Play reviewer writes that the Nabhmitra app "is very much useful for fishermen community", and Goa reports 1,219 vessels equipped by December 2025. But a West Bengal fisher told ETV Bharat the transponders had been fitted "but the system is yet to be made functional"; Dakshina Kannada's joint director confirmed that "following technical issue of water ingress" the vendor is replacing every unit; the fishermen's association petition says current systems "offer little more than location tracking and basic text messaging and expensive two-way calls at Rs 25 per minute"; and a Tamil Nadu official says the IsatPhone 2 "will lose satellite signal so it can't keep continuous connection". The complaint is about reliability, voice and data, not about the absence of an integrated bridge. Publicly observedS36S31S26S32S72

Theme three: search and rescue is slow

Families protest at coastal police stations over delayed searches, as at Anchuthengu in August 2026; after Ockhi a Kanyakumari fisher said, "We heard some people screaming for help but we could not find anyone, so we tried informing the navy but they claimed that our voices were not audible." The signal is not a demand for a product; it is a demand for a position the rescuer can trust within the first hour. An owner app that raises a loss-of-contact alert and hands a last-known track to the Coast Guard speaks directly to it. Publicly observedS65S131 Inferred

Theme four: who is paying, and for what

Demand with money behind it is for satellite voice and data. Maharashtra's fisheries minister says "Satellite phones can serve as a lifeline for fishermen"; BSNL Mangaluru expects "around 50 additional connections from Udupi, and another 50 from Mangaluru", driven by fishing companies with several boats; Tamil Nadu gives satphones at 75 percent subsidy; a Mangaluru association in 2020 had already "tested BSNL's transponder which has two-way data communication directly over satellite". Vendors echo it: Skylo priced its service "as low as a daily cup of tea/coffee", and ABJ Impex reports "voice and video calls and live CCTV with boats more than 300 nautical miles offshore". Fuel is the counter-signal: "The steep hike in diesel prices has emerged as the most pressing concern for fishermen," says the Odisha producers' association, and Kerala owners put a three-day trip at ₹1.5 lakh of fuel. Publicly observedS73S74S76S75S84S72S67S69

Theme five: mandates and programmes set the terms

Official language frames what buyers expect to comply with. The draft rules say "All Fishing Vessels shall be fitted with AIS transceivers in working condition." The ministry says "By providing mandatory use of transponders, the safety and security of fishermen and fishing vessels is ensured in the deep-sea." The minister told the Lok Sabha that "more than 49,000 transponders have already been installed", and NSIL names Saankhya Labs, Avantel and Accord as its suppliers. An industry voice, Ganesh Nakhawa, notes that state acts already require AIS on mechanised boats. The buyer hears a mandate and a free device together, which lowers private willingness to pay for tracking and raises the value of anything that makes compliance easier. VerifiedS45S133S24S34 Publicly observedS83

Requirements observed in tenders and schemes

VerifiedS35S81S45S133S134 Rax-suppliedS6

Signals about Rax

Searches for DeepSea Master, DSM and Rax Tech marine products returned only Rax's own pages: a products list with four Marine Engineering models and a "Datasheet" link that opens the 24-page presentation, which carries no electrical, environmental or radio specification. No news item, association mention, marketplace listing, review or tender record names Rax in this category. Internally, the sales lead says "no one will refer us because we have bad names in market" and that urgent orders are lost because "we depend on components". In a harbour where associations talk daily, those two sentences describe the risk more precisely than any external signal could. Rax-suppliedS139S6 Unknown

Patterns and what they imply

Four patterns stand out. First, the problem statement buyers use is unreachability and the families' first hours, which argues for positioning DSM's owner app and loss-of-contact alert ahead of navigation. Second, buyers already compare connectivity options by reliability and per-minute cost, so the satellite path must be named, legal and priced in rupees per month before anyone listens. Third, nobody in the record asks for compartment sensors, cameras or crew tags; those features are unvalidated, and the validation trial should test whether owners with freezers and large crews value them. Fourth, the government is the loudest voice and sets expectations at "free" for tracking and SOS, so DSM's paying buyer is the one who needs more than compliance: a company running several boats. Inferred Recommendation

The register

Eighteen risks are scored in the data file on likelihood and impact from 1 to 5; the matrix after this section plots them. The top ten by score are below with the owner role and the first mitigation. VerifiedS55S24S35S51S21S45S133 Publicly observedS67S32 Rax-suppliedS6

VerifiedS55S53S24S134S51S21S81S118S35S133 Publicly observedS67S74S32 Rax-suppliedS6S9

The remaining eight are lower but not trivial: draft rules requiring IMO-type radio and navigation equipment, a booked hardware and firmware bench, unpriced airtime and hosting, component-driven delivery slips inside the fitting window, Starlink or a BSNL data service resetting expectations at sea, DPDP obligations on crew and camera data, blame after a seizure if a geofence alert fails, and export gatekeepers in Oman and Sri Lanka. VerifiedS45S135 Publicly observedS57S60S111S114 Rax-suppliedS6

Compliance map

VerifiedS50S117S51S45S133S134S135S136S35 Publicly observedS137S138S52S118 Rax-suppliedS6

Testing costs are modest against the risk they retire: a TEC-designated lab lists ₹1.1 lakh for ICT equipment safety and ₹1.5 lakh for radio transmitter safety, and administrative fees run ₹10,000 to ₹50,000 by product group; EMC, radio and technical-parameter tests add to that, and IEC 60945 prices must be quoted by a lab. A realistic certification budget for the MBU, HMI and tags is ₹10 to ₹20 lakh, which the strategy section carries. Publicly observedS52S138 Recommendation

The quality and service constraint

The ground-truth record says customers will not refer Rax, support calls are frequent including at installation, quality control is sample-based on large orders, and urgent orders are lost to component dependency. In e-surveillance those failures cost ₹3.22 Cr of revenue in one year. On a fishing boat they cost more: a crew tag that does not raise an alarm, or a bilge alert that fails, is a safety event, and fishing communities pass news of failures through associations and harbour WhatsApp groups within a day. The field has just seen what happens when a supplier gets the enclosure wrong: every transponder in Dakshina Kannada is being replaced after water ingress, with a four-boat, one-month trial under NSIL inspection before redeployment. For DSM this means three rules: 100 percent functional and soak testing of every pilot unit rather than sampling; spares and a technician within a day's reach of every pilot harbour; and no second harbour until the first has completed a season with a fault log the owner has signed. Rax-suppliedS6 Publicly observedS32 Recommendation

Dependencies

Components: cellular modules, GNSS and AIS receivers, cameras and Bluetooth chips are imported, and the record shows component dependency already costs urgent orders; dual sourcing the cellular module and holding pilot stock before the ban ends are the minimum. Connectivity: DSM's satellite promise depends on a partner Rax does not yet have (BSNL, Skylo, or an interface to the Xponder), and cellular coverage ends 10 to 12 nautical miles out. Partners: a harbour installer-servicer, an Xponder supplier for the programme route, an association for trial boats. Scheme money: PMMSY item ceilings, Tamil Nadu's ₹2 lakh kit, and the VCSS rollout's pace, which has already slipped past its December 2025 target. Internal: the hardware and firmware engineers who are booked on e-surveillance and rack-monitoring work, and cash from a business whose turnover fell to ₹7.91 Cr in FY2025-26. Rax-suppliedS6 VerifiedS132S21S81S24 Publicly observedS84S53S27

Early-warning indicators

VerifiedS45S134 Publicly observedS36S57S84S67S32 Recommendation

Three options

The starting point is zero: Rax has made no DeepSea Master sale and has no installed base, paying customer, pilot or reference, so every option below begins by creating the first evidence rather than scaling existing evidence. Each option is a genuinely different first buyer, cost base and time to cash. All three share one fixed cost: certification and a legal communications path, without which none of them can sell. Rax-suppliedS140 VerifiedS51S55 Recommendation

VerifiedS35S21S17S81 Publicly observedS74S53S105S106 Rax-suppliedS6 EstimatedS7 Recommendation

Option 1: fleet-first validation

Rax sells a paid validation trial to one or two fishing companies and one owners' group: ten to twenty vessels, mostly the vessel tier, with the Xponder read into the DSM dashboard, crew tags, engine-room and cold-hold sensors, and a loss-of-contact alert to the owner and a named Coast Guard contact. The evidence that this buyer exists is direct: BSNL Mangaluru reports fishing companies operating several boats buying satellite phones at ₹1.34 lakh plus airtime, and Tamil Nadu's deep-sea owners petition for data at sea. The option matches Rax's size (two salespeople, one harbour at a time), produces evidence that the other two options need, and exposes the least cash. Its weakness is scale: there are hundreds, not thousands, of such buyers within reach. Publicly observedS74S72S53 Rax-suppliedS6 Recommendation

Option 2: programme-led through states and NSIL

Rax positions DSM components where public money already flows: as a sub-supplier to Accord, Avantel or Saankhya Labs for accessories to the Xponder, and as a scheduled item in Tamil Nadu's ₹2 lakh or PMMSY's ₹1 lakh safety kit. The prize is real: one NSIL RFP covered 45,252 motorised boats, harbour by harbour, and a state award of 2,000 vessels at a blended ₹1.5 lakh is the only lever in the sizing that moves 2031 revenue from ₹12 Cr to ₹40 Cr. But Rax cannot bid as prime: the RFP required ₹25 Cr average turnover over FY2021-22 to FY2023-24 and positive net worth, and paid 80 percent on delivery and 20 percent on installation with 5 percent retained and the extended warranty released over three years. The state tracking-device ceiling is ₹35,000, below DSM's entry price. Time to cash is two to three years, and a quality failure across thousands of boats would end Rax's marine business. VerifiedS35S21S81S34 EstimatedS6 Rax-suppliedS6

Option 3: yard and association fitment

Rax sells DSM to builders of new and upgraded vessels and to associations buying for members. PMMSY has approved 480 deep-sea fishing vessels at up to ₹120 lakh and 1,338 upgradations at ₹15 lakh each; Cochin Shipyard has built longliners for the Palk Bay scheme; FRP yards in Nagapattinam sell 31 to 41 foot commercial boats from ₹3.35 lakh; Kerala's owners' association and Matsyafed's 654 societies aggregate demand and credit. Factory fitment removes the hardest part of retrofit (wiring a working boat in a short ban window) and a ₹2.5 lakh system is a small share of a ₹120 lakh hull. The option fails today because yards specify what owners trust and what surveyors accept; an unreferenced, uncertified system is a liability on a new hull. Re-proposing associations as a channel also needs a reason, because channel partners with their own sales teams have failed Rax before: the reason here is that the association is the buyers' own body, but that only works after a member's boat has proved the product. VerifiedS21S17S18 Publicly observedS105S106S69S102 Rax-suppliedS6 Inferred

Recommendation and why the alternatives lose now

Choose Option 1 and run the certification workstream of Option 2 in parallel, because the certificates serve both. Option 2 loses as a first move because Rax fails the prime-bidder gate, the price ceiling sits below DSM, and cash arrives after two to three years. Option 3 loses as a first move because no yard or association will specify a system with no reference boat, no environmental test report and no service partner. Option 1 is the cheapest way to create the reference boat, the test report and the service partner. Open Option 3 in 2028-29 with the trial references, and bid Option 2 through a supplier once MTCTE is issued. VerifiedS35S21 Rax-suppliedS6 Recommendation

Ninety-day plan (to mid-December 2026)

VerifiedS132S60S59S50S51S81 Publicly observedS52S63S64S130 Rax-suppliedS6 Recommendation

Twelve-month plan (to September 2027)

VerifiedS25S51S135 Recommendation

Proof pilots

Design. One fishing company with five to ten vessels at Mangaluru or Kasimedu (vessel tier) and one owners' group of ten boats at Kasimedu or Cuddalore (boat tier plus Xponder integration). Trial fee at cost plus service, about ₹10 to ₹15 lakh in total, so the buyer has committed money. Each vessel carries a signed protocol: monthly SOS drill, route and fuel logging for at least ten trips, crew-tag wearing, engine and hold alarms, and a fault log countersigned by the skipper. Recommendation

Target accounts. The Mangaluru and Udupi fishing companies adding BSNL satphones; multi-boat members of the National Association of Fishermen in Tamil Nadu; owners at Kasimedu, Cuddalore and Thoothukudi exposed to Palk Bay seizures; members of the All Kerala Fishing Boat Operators Association at Kochi for the second season. Publicly observedS74S72S61S69 Recommendation

Success criteria that unlock scale. Positions received ashore on at least 95 percent of sea-days; every SOS drill received within five minutes beyond cellular range; no water-ingress failure and a hardware fault rate at or below 5 percent of units; median repair within 48 hours; owner app used weekly by 80 percent of trial owners; crew tags worn on 70 percent of crew-days; at least 60 percent of vessels renewing at the list service price; two written references. Meeting them moves the verdict to Pilot first and opens Options 2 and 3. Recommendation

Investment and the revenue it supports

The figures are planning allocations; lab quotes, the bill of materials and salary costs must replace them. Against them, the base-case revenue in the sizing section is ₹0.3 Cr in 2026-27, ₹1.5 Cr in 2027-28 and ₹4 Cr in 2028-29, about ₹5.8 Cr over three years; at the 40 to 45 percent gross margin the pricing section sets as a floor, that returns ₹2.3 to ₹2.6 Cr of gross profit against a ₹0.5 to ₹0.75 Cr investment. The upside is the programme: a 2,000-vessel award would add ₹10 to ₹30 Cr over two years but needs working capital of the same order because payments trail delivery. EstimatedS6S7S21S35 Recommendation

Dependencies on other Rax product lines

DSM borrows from four lines. The RT-RMC-G2V0 rack monitoring controller is functionally a Slave Bridge Unit (digital inputs, relays, temperature, humidity, leak, smoke, door, camera, Modbus) and its hardware should be the SBU's starting point. The EVA edge video units and IP-camera integration supply surveillance. The GSM and 4G two-way communicators supply the cellular path. The CMMS and FIOT platforms can host the DSM server and fleet dashboard, where the software team has spare bandwidth. The conflicts are in hardware and firmware: the same booked engineers support e-surveillance quality fixes and the rack-monitoring Saudi push, so DSM needs a ring-fenced engineer or it will slip. DSM also depends on e-surveillance cash while that business shrinks, and on Gulf Connect only after 2028. Rax-suppliedS6S5 Inferred

Kill criteria

VerifiedS45S55S34 Recommendation

Internal facts Rax must supply

Rax has confirmed that no DeepSea Master sale has been made and that there is no installed base or paying customer; the facts above are therefore about design and cost, not about field performance, which does not yet exist. Rax-suppliedS140S6S1

External unknowns, searches run and what would close them

VerifiedS10S45S24S134S81S132 Publicly observedS36S72S74S84S85S86S64 Unknown

Load-bearing assumptions that are unverified

1. DSM's list prices of ₹50,000 and ₹2.5 lakh hold as the tiers buyers will be quoted; the TAM of ₹2,330 Cr rests on them. Rax-suppliedS7
2. The registered fleet of 66,106 mechanised and 1,35,763 motorised craft is a working fleet; registers may include idle craft. Publicly observedS12
3. The serviceable market uses 2016 state rows scaled only as an upper bound; the 2025 census may move it either way. VerifiedS9
4. Obtainable revenue of ₹12 Cr in 2031 assumes two harbour partners and 800 installs a year, a capacity Rax has never demonstrated in marine. EstimatedS6
5. A 40 to 45 percent gross margin is achievable after installation and service reserves; no cost data exists. Unknown
6. The Xponder can be read by a third-party system without breaching programme terms. Unknown
7. Fuel savings from route planning are material; no measurement exists. Publicly observedS69 Unknown

Recommended next research actions, in priority order

1. Internal session with Engineering to answer the first five internal facts, within two weeks. Recommendation
2. Written enquiries to NSIL, one Xponder supplier, BSNL and Skylo on interface and airtime. Recommendation
3. Ten harbour interviews at Kasimedu and Mangaluru with multi-boat owners, testing willingness to pay for each DSM module separately. Recommendation
4. Lab quotes for MTCTE and IEC 60945, and a DPDP review of crew-tag data. Recommendation
5. A written eligibility request to the Tamil Nadu Fisheries Department. Recommendation
6. Re-run sizing when MFC 2025 results appear; track the final fishing vessel rules monthly. Recommendation

Search strategy

Research ran from 14 to 15 September 2026 and covers events from the 2009 AIS order to August 2026, with most sources from 2025 and 2026. Query families followed the prompt's thirteen questions: fleet counts (CMFRI census, Department of Fisheries handbooks, ReALCraft registrations); schemes (PMMSY booklet and guidelines, Lok Sabha and Rajya Sabha replies, PIB backgrounders, state scheme pages for Tamil Nadu, Kerala and Goa); the Vessel Communication and Support System (NSIL releases and RFPs, ISRO and SAC pages, district press on installation and replacement); regulation (the Merchant Shipping Act 2025, the draft Fishing Vessels Rules 2026, DG Shipping orders, the EEZ Rules 2025, DoT and TEC certification rules, DPDP Rules); incidents (Ockhi records, MEA replies on arrests, capsizing reports); competitors and prices (distributor and dealer sites, IndiaMART listings, Alibaba ranges through an aggregator, BSNL tariffs, Google Play); buyers and voice (association statements, state ministers, parliamentary committee findings); and export gatekeepers in Sri Lanka and Oman. VerifiedS9S21S24S34S45S133S51S59S132 Publicly observedS86S53S72S111S113

Tools were the Parallel search service (several queries per call, then targeted page extraction), direct PDF download with text extraction for the census, the NSIL RFP and the Rax catalogue, and headless page capture through the project's snapshot script for evidence images. Portals used include pib.gov.in, sansad.in, mea.gov.in, nsilindia.co.in, dof.gov.in, fisheries.tn.gov.in, cmfri.org.in and its eprints, shipmin.gov.in, dgshipping.gov.in, mtcte.tec.gov.in, eservices.dot.gov.in, bsnl.co.in, incois.gov.in, isro.gov.in and sac.gov.in. Searches were in English; Tamil and Malayalam press were not searched, which is a limit on voice of customer. VerifiedS18S60S35S30S10S45S44S51S50S54S40S37S38 Unknown

Source mix and confidence

Each claim carries one label. Verified was used only when the primary document itself was opened in the session; a primary figure reported by a newspaper is Publicly observed. Figures calculated from stated assumptions are Estimated and name the sources of each input. Non-India sources are 14 of 140, within the charter's one-fifth limit. VerifiedS9S132 Publicly observedS26S74 Rax-suppliedS140

Limits and workarounds

The Department of Fisheries PDF of the EEZ Rules returned HTTP 403 to both fetch tools, so the transponder mandate is cited from the PIB release that announces it. MFC 2025 results were not published at the cutoff, so the 2016 census and the November 2024 registration counts are used side by side. No paid analyst report exists for Indian fishing-vessel electronics, and none was bought. GeM bid search requires a login and was not used; NSIL's own RFP stood in as the clause-level tender evidence. Fishers' WhatsApp groups are closed and no attributable forum posts were found, so voice of customer relies on reporters and officials. The Browser pane and logged-in browsers were reserved for the lead session; evidence images were captured headlessly or from PDFs. No person was contacted, no form submitted and nothing bought. VerifiedS133S35 Publicly observedS10 Unknown

Changes between the first and second pass

The first pass replaced every sample section, data file and source with researched material and was committed in stages. The gap audit then checked each section against its brief and each prompt question, traced every deck figure to a primary source, and found four problems: the deck's Ockhi, coverage and arrest figures were secondary or wrong, and the "40 to 60 percent subsidy" was attached to a product that is not a listed item. The second pass added the parliamentary committee report on Ockhi, the EEZ Rules and Access Pass releases, the DPDP Rules, MTCTE phase dates and lab charges, the NSIL RFP's eligibility and payment clauses, and Rax's public catalogue; rewrote the voice, risk, strategy, gaps and method sections; recorded Rax's statement that no DeepSea Master sale has been made; and re-verified the ten most load-bearing numbers against their sources, as logged in the pass log. VerifiedS132S133S134S135S35 Rax-suppliedS139S140S2
